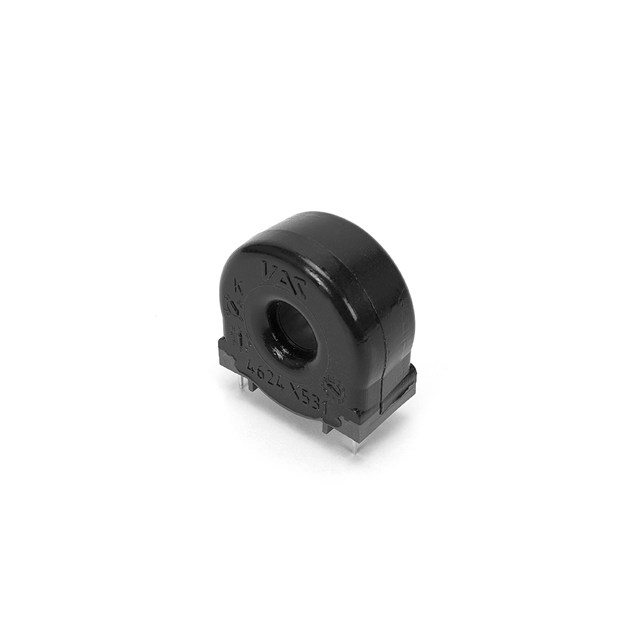

T60404E4626X501

T60404E4626X501

Part Number	T60404E4626X501
Manufacturer	VACUUMSCHMELZE GmbH & Co. KG.
Other Part Numbers	2258-T60404E4626X501-ND 2258-T60404E4626X501 96721751
Description	CURR SENSE XFMR 1:2500 100A TH
Detailed Description	100 A 1:2500 Current Sense Transformer 50Hz 44Ohm 2.1 H Through Hole
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Current Sense Transformers
Manufacturer		VACUUMSCHMELZE GmbH & Co. KG.
Series
Packaging		Box
Part Status		Active
Size / Dimension		1.339" L x 0.551" W (34.00mm x 14.00mm)
Mounting Type		Through Hole
Type		Non-Invasive (Solid Core)
Termination Style		PC Pin
DC Resistance (DCR)		44Ohm
Turns Ratio - Primary:Secondary		1:2500
Frequency Range		50Hz
Height - Seated (Max)		1.339" (34.00mm)
Current Ratio		2500:1
Inductance		2.1 H
Current Rating (Amps)		100 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		T60404E4626X501

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3471

Can ship immediately.
