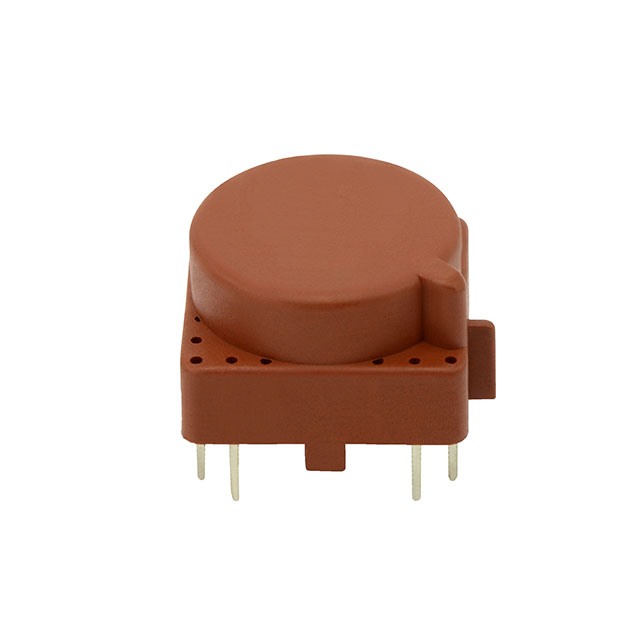

T60403D4097X055

Part Number
T60403D4097X055
Manufacturer VACUUMSCHMELZE GmbH & Co. KG.
Other Part Numbers
2258-T60403D4097X055-ND
94880017
2258-T60403D4097X055
T60403D4097X05582
Description GATE DRIVE TRANSFORMER PTH 1:1:1
Detailed Description 6.5mH Pulse Transformer 1:1:1 Through Hole
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer VACUUMSCHMELZE GmbH & Co. KG.
Series
Packaging
Box
Part Status Active
Inductance 6.5mH
Size / Dimension 0.654" L x 0.583" W (16.60mm x 14.80mm)
Mounting Type Through Hole
Operating Temperature -40°C ~ 85°C
Turns Ratio - Primary:Secondary 1:1:1
ET (Volt-Time) 200VµS
Height - Seated (Max) 0.532" (13.50mm)

Documents & Media

RESOURCE TYPE LINK
Datasheets T60403D4097X055

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.2000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 5603

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
