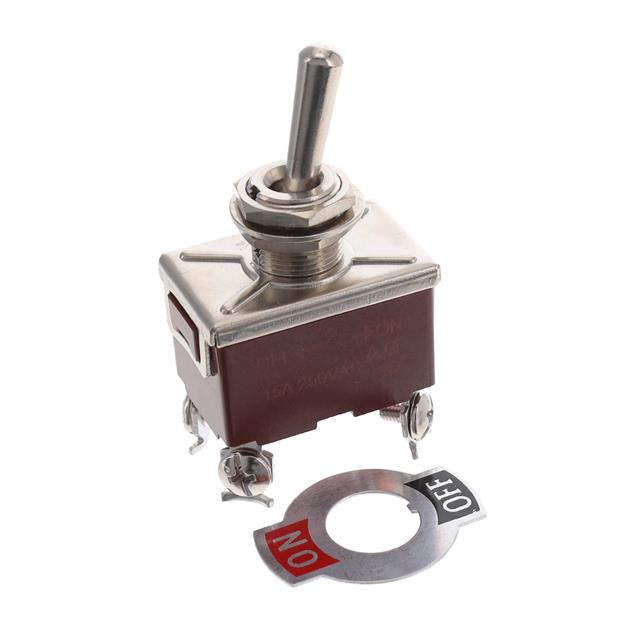

SW-T1-3A-D-K2

SW-T1-3A-D-K2

Part Number	SW-T1-3A-D-K2
Manufacturer	Adam Tech
Other Part Numbers	2057-SW-T1-3A-D-K2-ND 2057-SW-T1-3A-D-K2
Description	SWITCH TOGGLE DPST 15A 125V
Detailed Description	Toggle Switch DPST Panel Mount
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Toggle Switches
Manufacturer		Adam Tech
Series		SW
Packaging		Bag
Part Status		Active
Current Rating (Amps)		15A (AC)
Mounting Type		Panel Mount
Circuit		DPST
Switch Function		On-Off
Operating Temperature		-25°C ~ 85°C
Termination Style		Screw Terminal
Illumination		Non-Illuminated
Bushing Thread		M12 x 0.75
Actuator Length		17.50mm
Actuator Type		Standard Round
Panel Cutout Dimensions		Circular - 12.20mm Dia
Voltage Rating - AC		125 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SW-T1-3A-D-K2
Datasheets		WOYR2.E520713- Switches, Appliance, Special Use

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 74

Can ship immediately.
