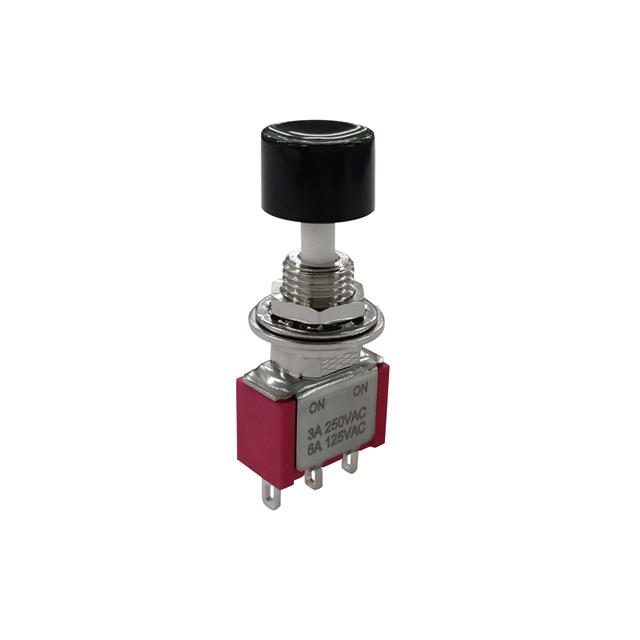

SW-PB8-AA22A1QE-3

SW-PB8-AA22A1QE-3

Part Number	SW-PB8-AA22A1QE-3
Manufacturer	Adam Tech
Other Part Numbers	2057-SW-PB8-AA22A1QE-3-ND 2057-SW-PB8-AA22A1QE-3
Description	ALTERNATE ACTING PUSHBUTTON SWIT
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Rear
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Adam Tech
Series		SW
Packaging		Box
Part Status		Active
Current Rating (Amps)		6A (AC/DC)
Mounting Type		Panel Mount, Rear
Circuit		SPDT
Type		Standard
Switch Function		On-On
Operating Temperature		-30°C ~ 85°C
Termination Style		Solder Lug
Actuator Type		Round, Button
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - AC		125 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SW-PB8-AA22A1QE-3
Datasheets		WOYR2.E520713- Switches, Appliance, Special Use

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 136

Can ship immediately.
