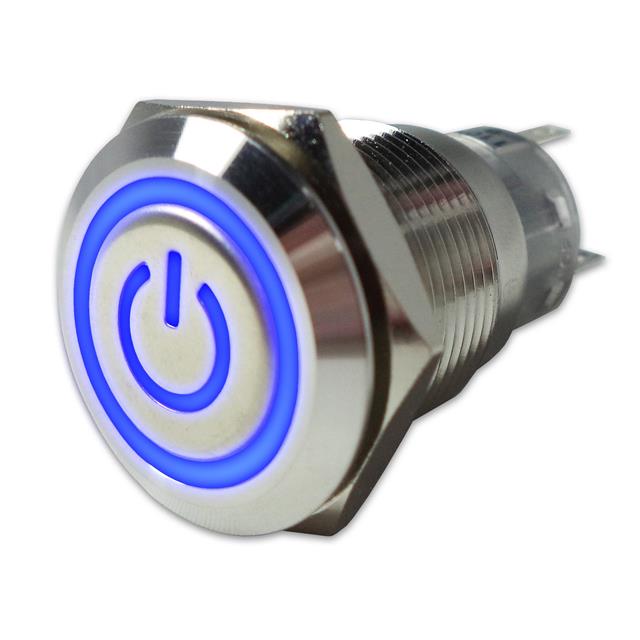

SW-PB7-03LB22CFPB12V

SW-PB7-03LB22CFPB12V

Part Number	SW-PB7-03LB22CFPB12V
Manufacturer	Adam Tech
Other Part Numbers	2057-SW-PB7-03LB22CFPB12V-ND 2057-SW-PB7-B221L3B12V-9CL SW-PB7-B221L3B12V-9CL 2057-SW-PB7-03LB22CFPB12V 2057-SW-PB7-B221L3B12V-9CL-ND
Description	ANTI-VANDAL PUSHBUTTON SWITCH, 1
Detailed Description	Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		Adam Tech
Series		SW
Packaging		Box
Part Status		Active
Mounting Type		Panel Mount, Front
Circuit		SPDT
Type		Anti-Vandal, Illuminated
Switch Function		On-On
Operating Temperature		-25°C ~ 55°C
Termination Style		Solder Lug
Illumination Type, Color		LED, Blue
Illumination Voltage (Nominal)		12 VAC/DC
Actuator Type		Round, Button
Ingress Protection		IP67 - Dust Tight, Waterproof
Panel Cutout Dimensions		Circular - 19.00mm Dia
Color - Actuator/Cap		Silver
Actuator Marking		No Marking

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SW-PB7-03LB22CFPB12V
Datasheets		WOYR2.E520713- Switches, Appliance, Special Use

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 39

Can ship immediately.
