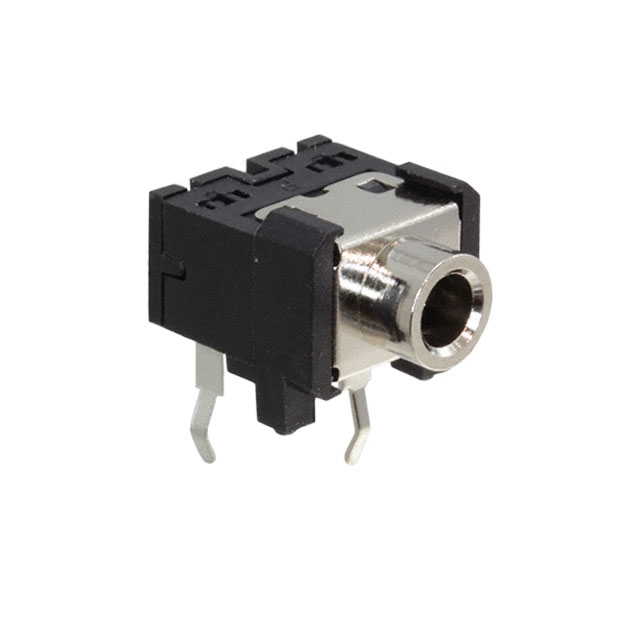

STX-3200-3NB _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	STX-3200-3NB
Manufacturer	Kycon
Other Part Numbers	2092-STX-3200-3NB-ND 2092-STX-3200-3NB
Description	CONN JACK STEREO 3.5MM PCB R/A
Detailed Description	3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Kinked Pin
Manufacturer Standard Lead Time	22 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Kycon
Series		STX-3200
Packaging		Bulk
Part Status		Active
Features		Board Guide
Connector Type		Phone Jack
Gender		Female
Mounting Type		Through Hole, Right Angle
Shielding		Unshielded
Operating Temperature		-25°C ~ 100°C
Number of Positions/Contacts		3 Conductors, 3 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Stereo (3 Conductor, TRS)
Termination		Kinked Pin
Contact Material		Copper Alloy, Phosphor Bronze
Housing Material		Polybutylene Terephthalate (PBT), Glass Filled
Body Color		Black
Contact Material - Plating		Nickel, Tin
Actual Diameter		0.142" (3.60mm)
Industry Recognized Mating Diameter		3.50mm (0.141", 1/8", Mini Plug) - Headphone

RESOURCE TYPE		LINK
Datasheets		STX-3200-3NB

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
