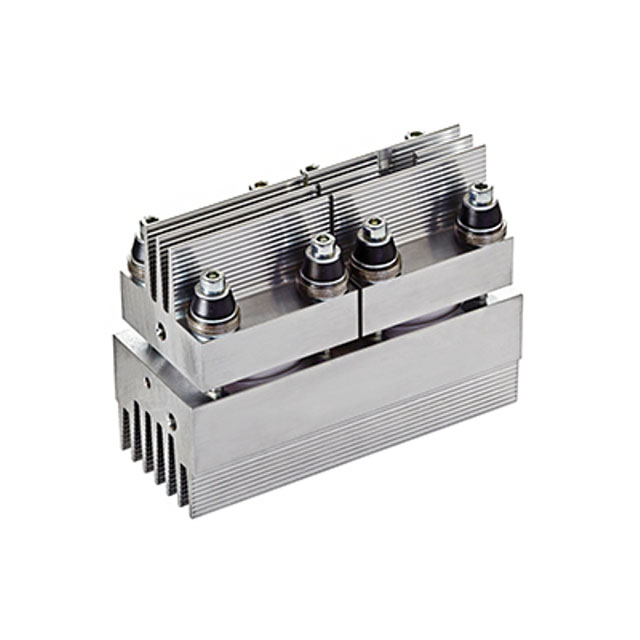

STT1900N16P55XPSA1

Part Number
STT1900N16P55XPSA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
STT1900N16P55XPSA1-ND
2156-STT1900N16P55XPSA1
INFINFSTT1900N16P55XPSA1
SP001630152
STT1900N16P55
Description SCR MODULE POWERBLOCK PS55-1
Detailed Description SCR Module 1.6 kV 1-Phase Controller - All SCRs Chassis Mount Module
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Tray
Part Status Active
Package / Case Module
Mounting Type Chassis Mount
Operating Temperature 125°C (TJ)
Structure 1-Phase Controller - All SCRs
Current - Hold (Ih) (Max) 300 mA
Current - Gate Trigger (Igt) (Max) 200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 17000A @ 50Hz
Number of SCRs, Diodes 2 SCRs
Voltage - Gate Trigger (Vgt) (Max) 2 V
Voltage - Off State 1.6 kV

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
