STP04CM05XTTR

Part Number
STP04CM05XTTR
Manufacturer STMicroelectronics
Other Part Numbers
497-6942-2-ND
497-6942-1-ND
497-6942-6-ND
STP04CM05XTTR-ND
497-6942-1
497-6942-2
497-6942-6
Description IC LED DRVR LIN 400MA 16HTSSOP
Detailed Description LED Driver IC 4 Output Linear Shift Register Dimming 400mA 16-HTSSOP
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

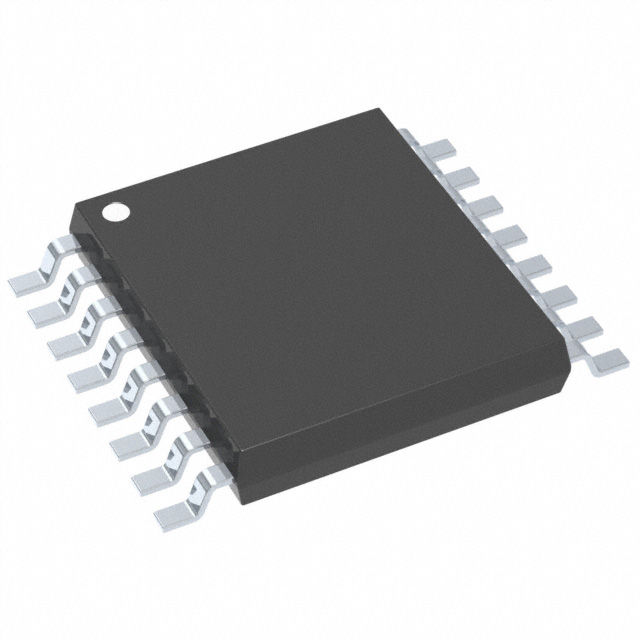

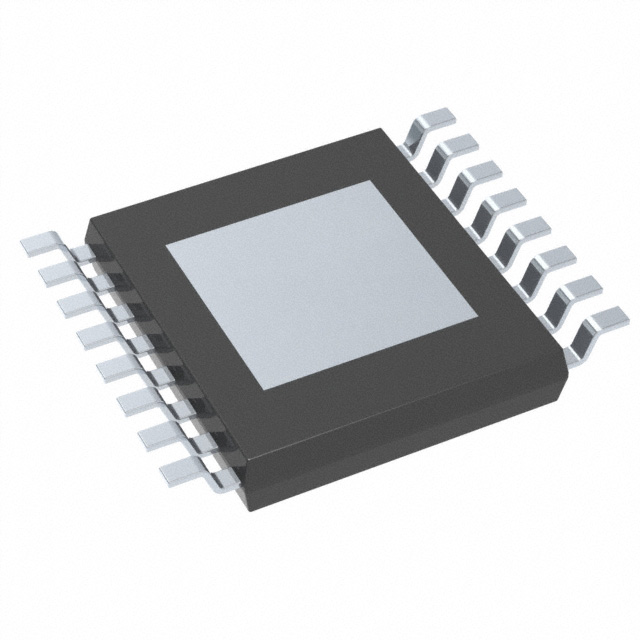

Package / Case 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Voltage - Output 19V
Mounting Type Surface Mount
Number of Outputs 4
Frequency 30MHz
Type Linear
Operating Temperature -40°C ~ 125°C (TA)
Current - Output / Channel 400mA
Internal Switch(s) Yes
Topology Shift Register
Supplier Device Package 16-HTSSOP
Voltage - Supply (Min) 3.3V
Voltage - Supply (Max) 5.5V

Documents & Media

RESOURCE TYPE LINK
Datasheets STP04CM05XTTR

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 66

Can ship immediately.
