STGP3NB60F

Part Number
STGP3NB60F
Manufacturer STMicroelectronics
Other Part Numbers
497-2653-5-ND
497-2653-5
497-2653-5-NDR

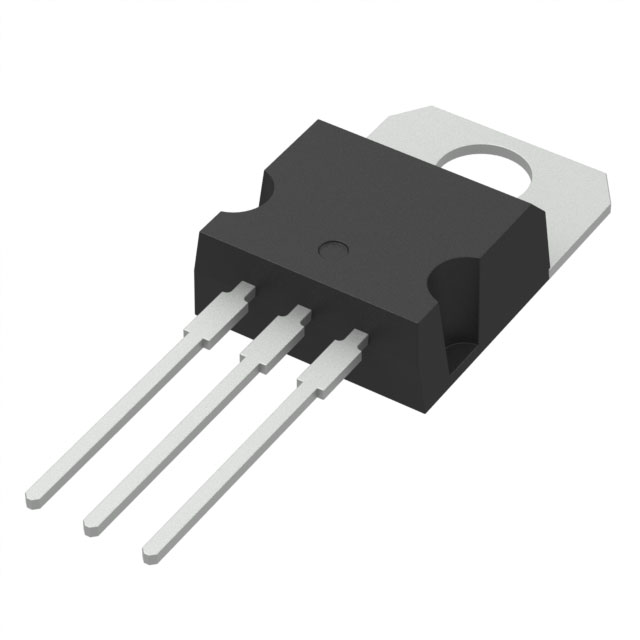

Description IGBT 600V 6A 68W TO220
Detailed Description IGBT 600 V 6 A 68 W Through Hole TO-220
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
PowerMESH™
Packaging
Tube
Part Status Obsolete
Package / Case TO-220-3
Mounting Type Through Hole
Operating Temperature 150°C (TJ)
Input Type Standard
Reverse Recovery Time (trr) 45 ns
Vce(on) (Max) @ Vge, Ic 2.4V @ 15V, 3A
Supplier Device Package TO-220
Td (on/off) @ 25°C 12.5ns/105ns
Switching Energy 125µJ (off)
Test Condition 480V, 3A, 10Ohm, 15V
Gate Charge 16 nC
Current - Collector (Ic) (Max) 6 A
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector Pulsed (Icm) 24 A
Power - Max 68 W

Documents & Media

RESOURCE TYPE LINK
Datasheets STGP3NB60F
Datasheets STGx3NB60F(D)

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
