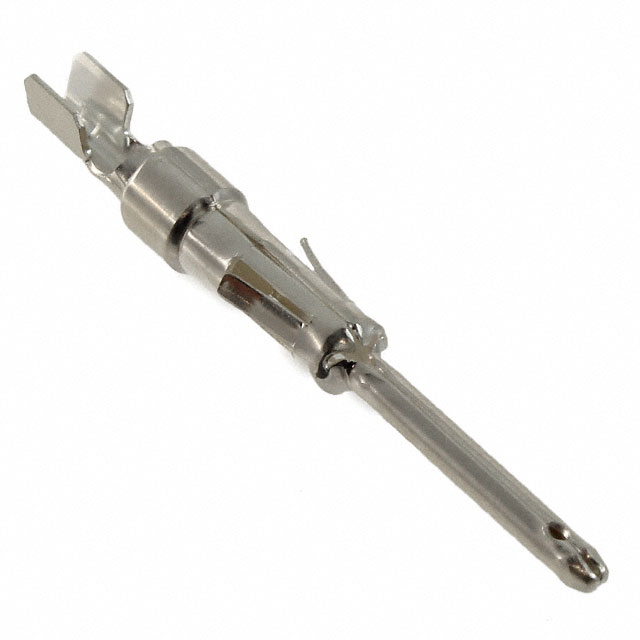

ST-JL05-16P-C2-100

ST-JL05-16P-C2-100

Part Number	ST-JL05-16P-C2-100
Manufacturer	JAE Electronics
Other Part Numbers	670-2420-ND -ST-JL05-16P-C2-100 STJL0516PC2100 670-2420
Description	CONTACT PIN 16-20AWG CRIMP SLVR
Detailed Description	Pin Contact 16-20 AWG Size 16 Crimp Silver
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Circular Connectors Circular Connector Contacts
Manufacturer		JAE Electronics
Series		JL05
Packaging		Tube
Part Status		Active
Features		Insulation Support
Contact Finish		Silver
Contact Termination		Crimp
Type		Signal, Stamped
Contact Type		Pin
Contact Size		16
Wire Gauge or Range - AWG		16-20 AWG
Wire Gauge or Range - mm²		0.5 ~ 1.25mm²
Contact Material		Copper Alloy
Termination Finish		Copper Alloy

Documents & Media

RESOURCE TYPE		LINK
Datasheets		ST-JL05-16P-C2-100
Datasheets		Circular Connectors
Datasheets		ST-JL05-16P-Cx Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10005

Can ship immediately.
