SSF-LXH534SID

Part Number
SSF-LXH534SID
Manufacturer Lumex, Inc.
Other Part Numbers
67-2203-ND
67-2203
SSF-LXH534SID-ND

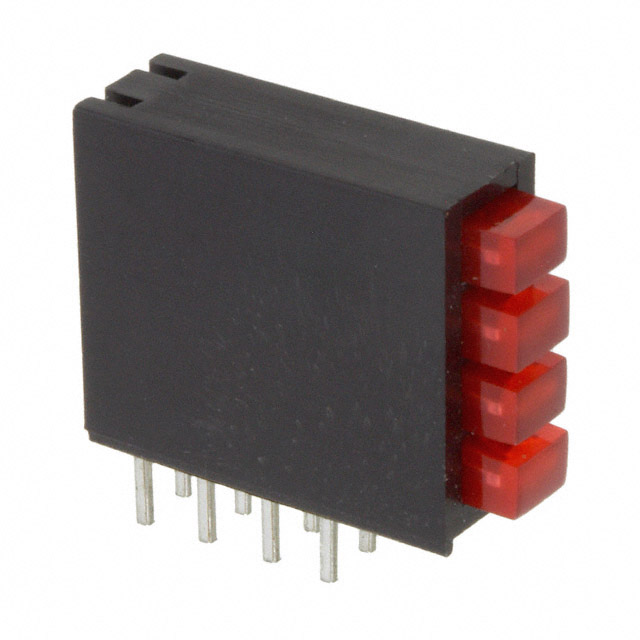

Description LED CBI 3X2MM QUAD RED RA
Detailed Description LED Circuit Board Indicator LED Circuit Board Indicator 4 High Red (x 4) Diffused, Tinted 2.0V 30mA Rectangle with Flat Top 3.00mm x 2.00mm Through Hole, Right Angle
Datasheet Datasheet

Product Attributes

Category
Manufacturer Lumex, Inc.
Series
Packaging
Bulk
Part Status Active
Current 30mA
Color Red (x 4)
Voltage Rating 2.0V
Mounting Type Through Hole, Right Angle
Millicandela Rating 120mcd
Configuration 4 High
Viewing Angle 100°
Lens Type Diffused, Tinted
Wavelength - Peak 636nm
Lens Style Rectangle with Flat Top
Lens Size 3.00mm x 2.00mm

Documents & Media

RESOURCE TYPE LINK
Datasheets SSF-LXH534SID
Datasheets Lumex RoHS Cert

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
