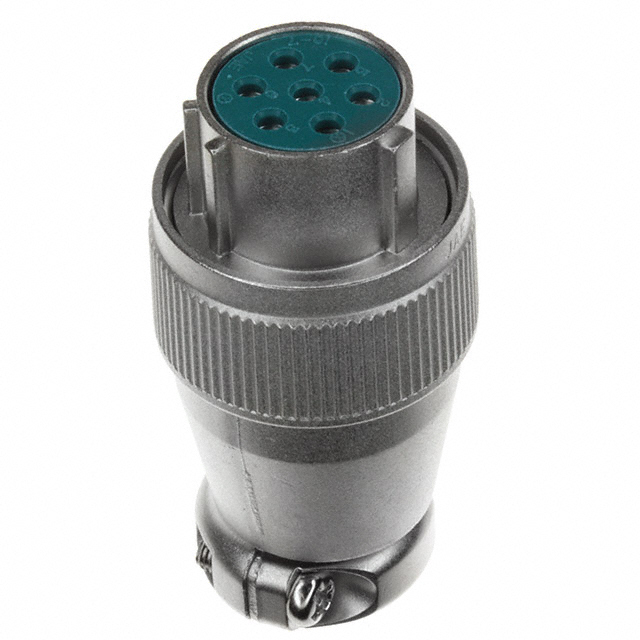

SRCN6A16-7S _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	SRCN6A16-7S
Manufacturer	JAE Electronics
Other Part Numbers	670-1149-ND 670-1149
Description	CONN PLUG FMALE 7P SOLDER CUP
Detailed Description	7 Position Circular Connector Plug, Female Sockets Solder Cup
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		JAE Electronics
Series		SRCN
Packaging		Bulk
Part Status		Active
Features		Backshell, Cable Clamp, Coupling Nut
Connector Type		Plug, Female Sockets
Color		Silver
Voltage Rating		250VAC, 350VDC
Current Rating (Amps)		10A
Mounting Type		Free Hanging (In-Line)
Number of Positions		7
Orientation		N (Normal)
Shell Size - Insert		16-7
Operating Temperature		-25°C ~ 85°C
Applications		Communication Systems, Telecommunications, Test Equipment & Measurement
Fastening Type		Threaded
Termination		Solder Cup
Cable Opening		0.453" (11.51mm)
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Contact Finish - Mating		Silver
Shell Material		Aluminum Alloy
Shell Finish		Nickel
Insert Material		Plastic
Backshell Material, Plating		Aluminum Alloy, Nickel
Primary Material		Metal

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
