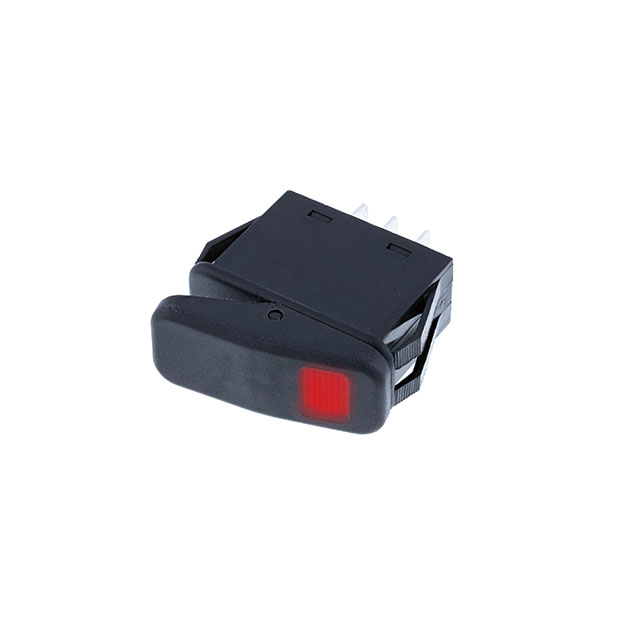

SRC2-1A-DC-1-RL _ Rocker Switches_Switches

Part Number	SRC2-1A-DC-1-RL
Manufacturer	Switch Components
Other Part Numbers	2299-SRC2-1A-DC-1-RL-ND 2299-SRC2-1A-DC-1-RL
Description	SWITCH ROCKER SPST 21A 14V
Detailed Description	Rocker Switch SPST 21A (DC) Panel Mount, Snap-In
Datasheet	Datasheet

Category		Switches Rocker Switches
Manufacturer		Switch Components
Series		SRC2
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		21A (DC)
Mounting Type		Panel Mount, Snap-In
Circuit		SPST
Switch Function		On-Off
Operating Temperature		-20°C ~ 85°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Illumination Type, Color		LED, Red
Illumination Voltage (Nominal)		14 VDC
Actuator Type		Convex (Reverse V) - Illuminated
Approval Agency		cURus
Ingress Protection		IP56 - Dust Protected, Water Resistant
Panel Cutout Dimensions		Rectangular - 36.80mm x 15.30mm
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - DC		14 V

RESOURCE TYPE		LINK
Datasheets		SRC2-1A-DC-1-RL

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
