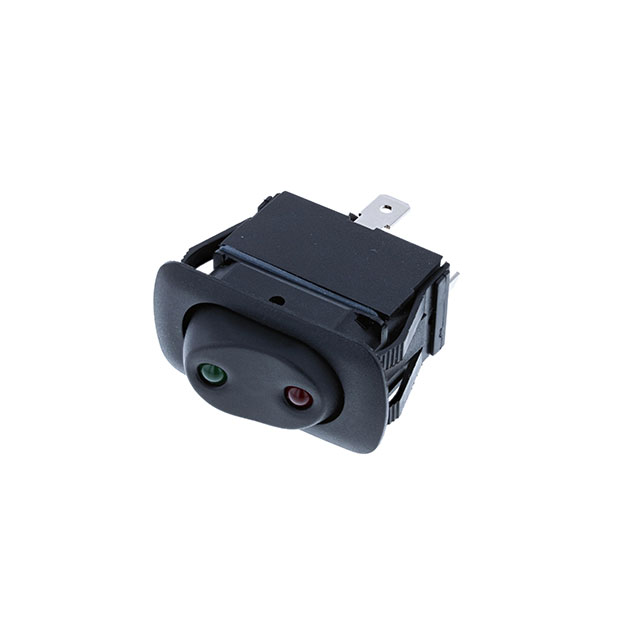

SRA2-1D-DC-1-RG _ Rocker Switches_Switches

Part Number	SRA2-1D-DC-1-RG
Manufacturer	Switch Components
Other Part Numbers	2299-SRA2-1D-DC-1-RG-ND 2299-SRA2-1D-DC-1-RG
Description	SWITCH ROCKER SPDT 21A 14V
Detailed Description	Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In
Datasheet	Datasheet

Category		Switches Rocker Switches
Manufacturer		Switch Components
Series		SRA2
Packaging		Bulk
Part Status		Active
Current Rating (Amps)		21A (DC)
Mounting Type		Panel Mount, Snap-In
Circuit		SPDT
Switch Function		On-On
Operating Temperature		-20°C ~ 85°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Illumination Type, Color		LED, Green/Red
Illumination Voltage (Nominal)		14 VDC
Actuator Type		Oval - Illuminated
Approval Agency		CSA, cURus, ENEC
Ingress Protection		IP56 - Dust Protected, Water Resistant
Panel Cutout Dimensions		Rectangular - 36.60mm x 21.20mm
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - DC		14 V

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
