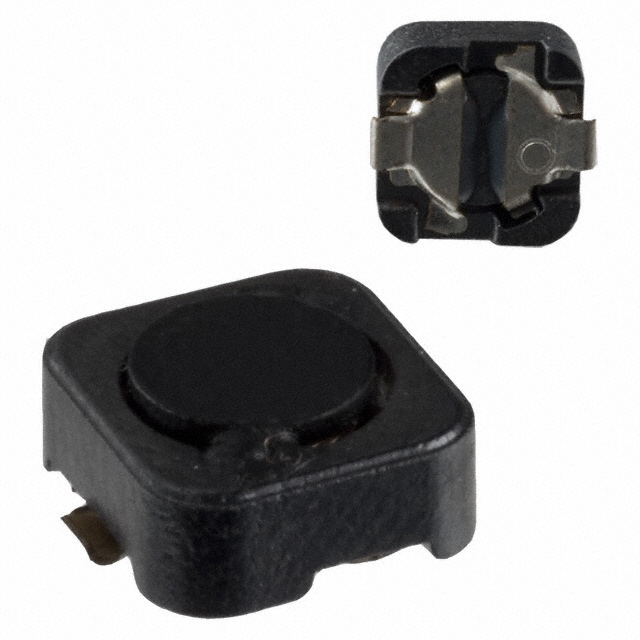

SPD62R-334M

Part Number
SPD62R-334M
Manufacturer API Delevan
Other Part Numbers
SPD62R-334M-ND
SPD62R-334M TR 1500
Description FIXED IND 330UH 220MA 3.3OHM SMD
Detailed Description 330 µH Shielded Drum Core, Wirewound Inductor 220 mA 3.3Ohm Max Nonstandard
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
SPD62R
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.260" L x 0.244" W (6.60mm x 6.20mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 3.3Ohm Max
Current - Saturation (Isat) 220mA
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.118" (3.00mm)
Inductance 330 µH
Current Rating (Amps) 220 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets SPD62R-334M
Datasheets Series SPD62 Side
Datasheets Series SPD62 Top
Datasheets Series SPD62 Bottom

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
