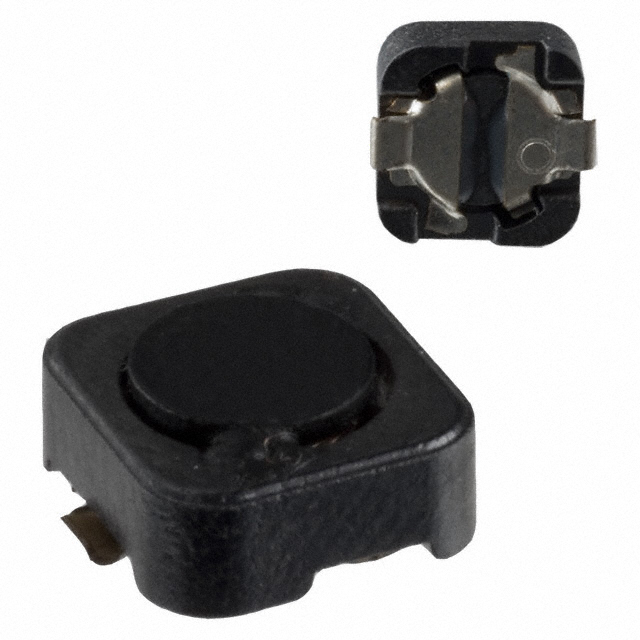

SPD62R-153M

Part Number
SPD62R-153M
Manufacturer API Delevan
Other Part Numbers
SPD62R-153M-ND
SPD62R-153M TR 1500
Description FIXED IND 15UH 1.2A 300 MOHM SMD
Detailed Description 15 µH Shielded Drum Core, Wirewound Inductor 1.2 A 300mOhm Max Nonstandard
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
SPD62R
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.260" L x 0.244" W (6.60mm x 6.20mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 300mOhm Max
Current - Saturation (Isat) 1.2A
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.118" (3.00mm)
Inductance 15 µH
Current Rating (Amps) 1.2 A

Documents & Media

RESOURCE TYPE LINK
Datasheets SPD62R-153M
Datasheets Series SPD62 Top
Datasheets Series SPD62 Side
Datasheets Series SPD62 Bottom

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
