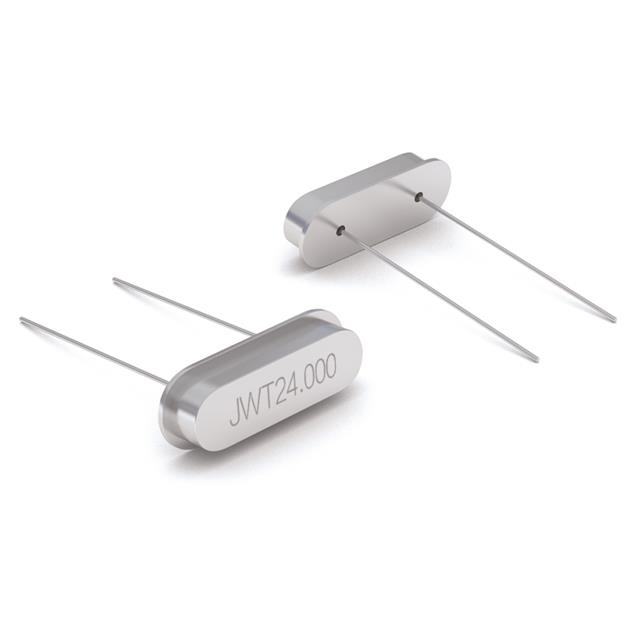

SP2024M00009T1521001

Part Number
SP2024M00009T1521001
Manufacturer Hefei Jingweite Electronics
Other Part Numbers
4538-SP2024M00009T1521001-ND
4538-SP2024M00009T1521001
Description 49S 24M 9PF 10 30 -20/70 25
Detailed Description 24 MHz ±10ppm Crystal 9pF 20 Ohms HC-49/U
Manufacturer Standard Lead Time 8 weeks

Product Attributes

Category
Manufacturer Hefei Jingweite Electronics
Series
HC-49S
Packaging
Bulk
Part Status Active
Package / Case HC-49/U
Load Capacitance 9pF
Size / Dimension 0.425" L x 0.173" W (10.80mm x 4.40mm)
Mounting Type Through Hole
Type MHz Crystal
Operating Temperature -20°C ~ 70°C
Frequency Stability ±30ppm
Frequency Tolerance ±10ppm
Operating Mode Fundamental
Height - Seated (Max) 0.145" (3.68mm)
ESR (Equivalent Series Resistance) 20 Ohms
Frequency 24 MHz

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.60.0060
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status Not applicable

In Stock: 961

Can ship immediately.
