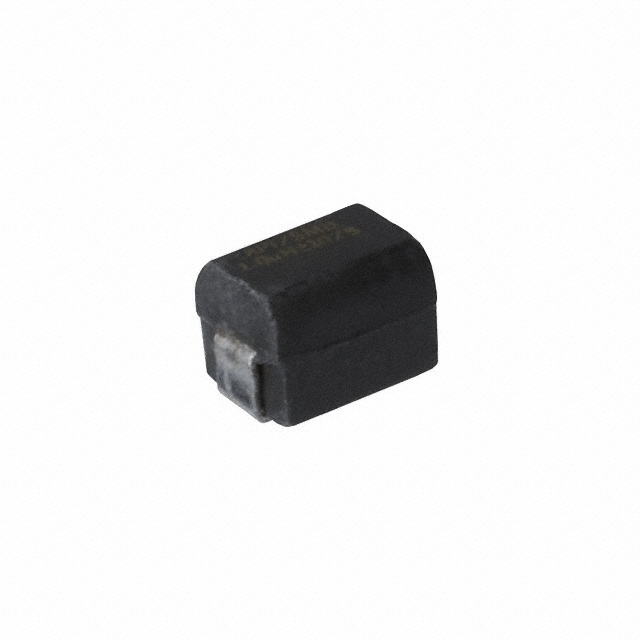

SP1812R-223K

Part Number
SP1812R-223K
Manufacturer API Delevan
Other Part Numbers
SP1812R-223KTR-ND
SP1812R-223KCT-ND
SP1812R-223KDKR-ND
SP1812R-223KTR
SP1812R223K
SP1812R-223K TR 500
SP1812R-223KCT
SP1812R-223KDKR
Description FIXED IND 22UH 509MA 750MOHM SMD
Detailed Description 22 µH Shielded Inductor 509 mA 750mOhm Max 1812 (4532 Metric)
Manufacturer Standard Lead Time 7 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer API Delevan
Series
SP1812R
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Package / Case 1812 (4532 Metric)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -55°C ~ 125°C
DC Resistance (DCR) 750mOhm Max
Current - Saturation (Isat) 438mA
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Supplier Device Package 1812
Height - Seated (Max) 0.134" (3.40mm)
Inductance 22 µH
Current Rating (Amps) 509 mA

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1000

Can ship immediately.
