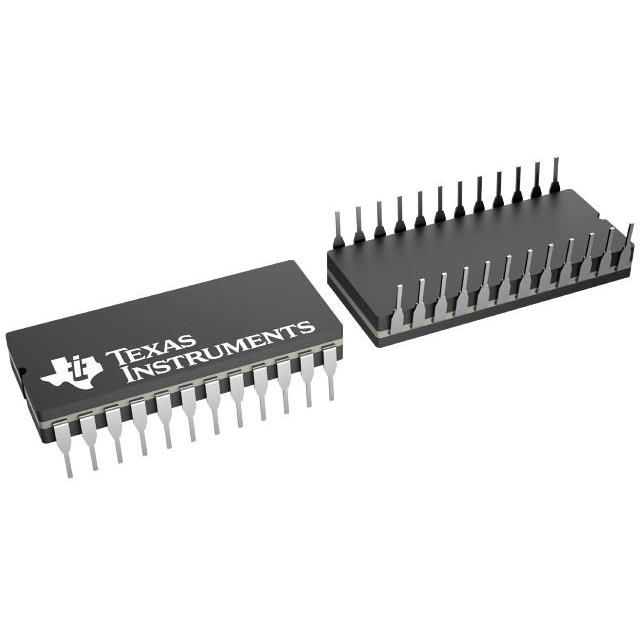

SNJ54LS674J

Part Number
SNJ54LS674J
Manufacturer Texas Instruments
Other Part Numbers
296-SNJ54LS674J-ND
296-SNJ54LS674J
Description 16-BIT SHIFT REGISTERS 24-CDIP -
Detailed Description Shift Shift Register 1 Element 16 Bit 24-CDIP

Product Attributes

Category
Manufacturer Texas Instruments
Series
54LS
Packaging
Tube
Part Status Active
Package / Case 24-CDIP (0.600", 15.24mm)
Output Type Tri-State
Mounting Type Through Hole
Number of Elements 1
Function Serial to Parallel, Serial
Logic Type Shift Register
Operating Temperature -55°C ~ 125°C (TA)
Voltage - Supply 4.5V ~ 5.5V
Supplier Device Package 24-CDIP
Number of Bits per Element 16

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant
