SN74HCS86QBQARQ1 _ Gates and Inverters_Logic_Integrated Circuits (ICs)

Part Number	SN74HCS86QBQARQ1
Manufacturer	Texas Instruments
Other Part Numbers	296-SN74HCS86QBQARQ1TR-ND 296-SN74HCS86QBQARQ1CT-ND 296-SN74HCS86QBQARQ1DKR-ND 296-SN74HCS86QBQARQ1CT 296-SN74HCS86QBQARQ1DKR 296-SN74HCS86QBQARQ1TR
Description	IC GATE XOR 4CH 2-INP 14WQFN
Detailed Description	XOR (Exclusive OR) IC 4 Channel Schmitt Trigger Input 14-WQFN (3x2.5)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Texas Instruments
Series		74HCS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Schmitt Trigger Input

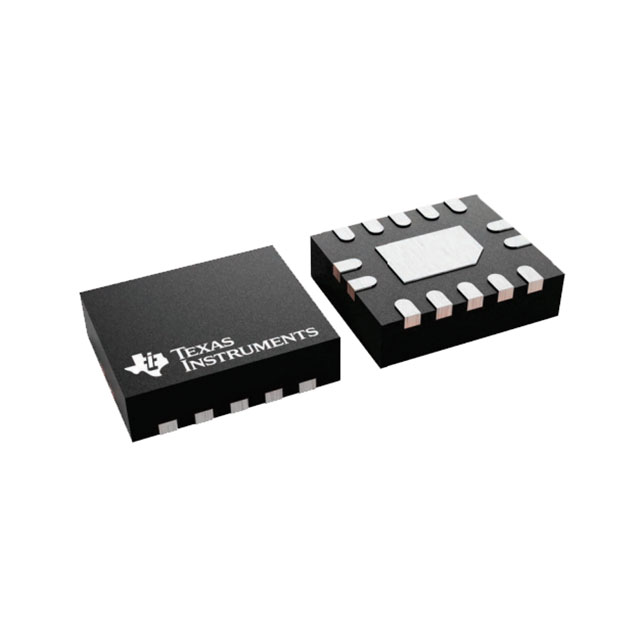

Package / Case		14-WFQFN Exposed Pad
Mounting Type		Surface Mount
Logic Type		XOR (Exclusive OR)
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		2V ~ 6V
Current - Output High, Low		7.8mA, 7.8mA
Number of Inputs		2
Supplier Device Package		14-WQFN (3x2.5)
Input Logic Level - High		1.5V ~ 4.2V
Input Logic Level - Low		1V ~ 3V
Max Propagation Delay @ V, Max CL		12ns @ 6V, 50pF
Grade		Automotive
Number of Circuits		4
Current - Quiescent (Max)		2 µA
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		SN74HCS86QBQARQ1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		Not applicable

Can ship immediately.
