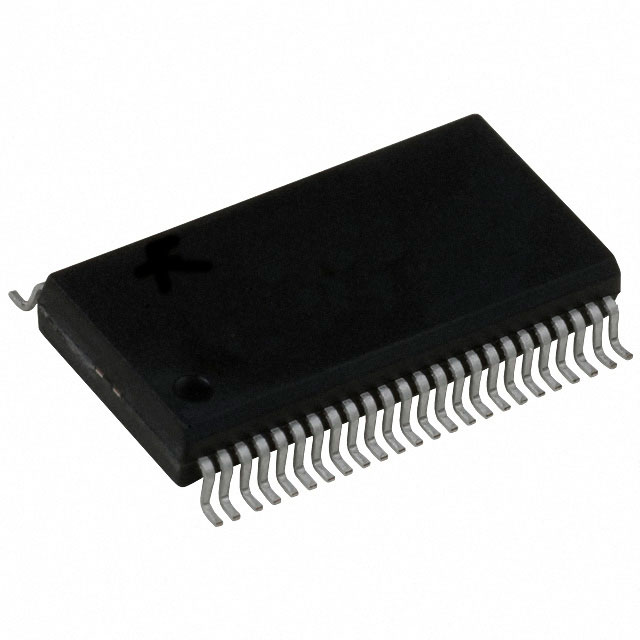

SN74ALVC164245DGGR

SN74ALVC164245DGGR

Part Number
SN74ALVC164245DGGR
Manufacturer Texas Instruments
Other Part Numbers
296-1135-2-ND
296-1135-1-ND
296-1135-6-ND
296-1135-1
296-1135-2
-SN74ALVC164245DGGR-NDR
-74ALVC164245DGGRE4
-74ALVC164245DGGRG4
-296-1135-1-ND
-74ALVC164245DGGRG4-NDR
-296-1135-1
296-1135-6
-74ALVC164245DGGRE4-NDR
Description IC TRANSLATOR BIDIR 48TSSOP
Detailed Description Voltage Level Translator Bidirectional 2 Circuit 8 Channel 48-TSSOP
Manufacturer Standard Lead Time 6 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Texas Instruments
Series
74ALVC
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 48-TFSOP (0.240", 6.10mm Width)
Output Type Tri-State, Non-Inverted
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C (TA)
Supplier Device Package 48-TSSOP
Channel Type Bidirectional
Translator Type Voltage Level
Channels per Circuit 8
Voltage - VCCA 2.3 V ~ 3.6 V
Voltage - VCCB 3 V ~ 5.5 V
Number of Circuits 2

Documents & Media

RESOURCE TYPE LINK
Datasheets Logic Guide
Datasheets Design 22/Feb/2022
Datasheets TSSOP Carrier Tape Chg 1/Sep/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 17115

Can ship immediately.
