SN54S374/BRA _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	SN54S374/BRA
Manufacturer	Advanced Micro Devices
Other Part Numbers	2156-SN54S374/BRA-ND AMDAMDSN54S374/BRA 2156-SN54S374/BRA
Description	54S374 - D FLIP-FLOP, 8-FUNC
Detailed Description	Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		Advanced Micro Devices
Series
Packaging		Bulk
Part Status		Active

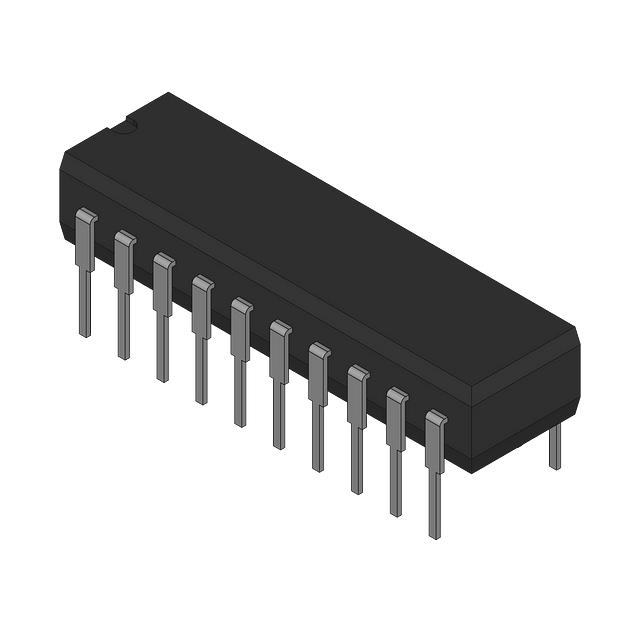

Package / Case		20-DIP
Output Type		Tri-State
Mounting Type		Through Hole
Number of Elements		1
Function		Reset
Type		D-Type
Operating Temperature		-55°C ~ 125°C (TA)
Voltage - Supply		4.5V ~ 5.5V
Current - Quiescent (Iq)		140 mA
Current - Output High, Low		32mA, 2mA
Trigger Type		Positive Edge
Clock Frequency		100 MHz
Supplier Device Package		20-PDIP
Max Propagation Delay @ V, Max CL		17ns @ 5V, 15pF
Number of Bits per Element		8

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
