SN54S241/BRA

SN54S241/BRA

Part Number	SN54S241/BRA
Manufacturer	Advanced Micro Devices
Other Part Numbers	2156-SN54S241/BRA-ND AMDAMDSN54S241/BRA 2156-SN54S241/BRA
Description	IC BUFFER NON-INVERT 5.5V 20CDIP
Detailed Description	Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-CDIP

Product Attributes

Category		Integrated Circuits (ICs) Logic Buffers, Drivers, Receivers, Transceivers
Manufacturer		Advanced Micro Devices
Series
Packaging		Bulk
Part Status		Active

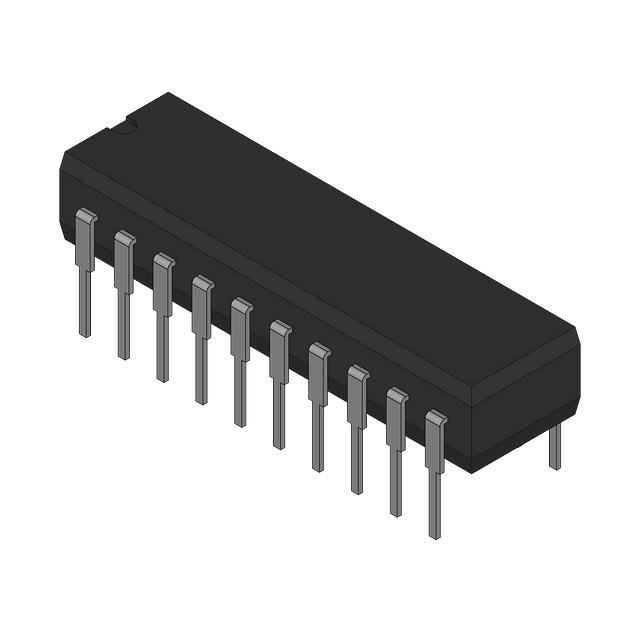

Package / Case		20-CDIP (0.300", 7.62mm)
Output Type		3-State
Mounting Type		Through Hole
Number of Elements		2
Logic Type		Buffer, Non-Inverting
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		4.5V ~ 5.5V
Number of Bits per Element		4
Current - Output High, Low		15mA, 48mA
Supplier Device Package		20-CDIP

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
