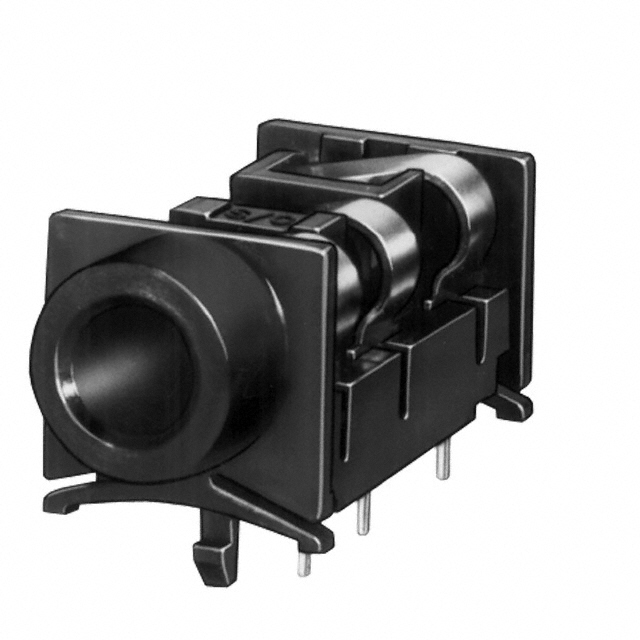

SN37A14B _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	SN37A14B
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC1570-ND SN37A14B-ND SC1570
Description	CONN JACK STEREO 6.35MM R/A
Detailed Description	6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series		SN37A
Packaging		Bulk
Part Status		Active
Features		Board Guide, Cover
Connector Type		Phone Jack
Gender		Female
Mounting Type		Through Hole, Right Angle
Shielding		Unshielded
Number of Positions/Contacts		3 Conductors, 5 Contacts
Internal Switch(s)		Two Switches
Signal Lines		Stereo (3 Conductor, TRS)
Termination		Solder
Includes		3 pcs - 1 Connector, 1 Nut, 1 Washer
Contact Material		Brass
Housing Material		Thermoplastic
Body Color		Black
Contact Material - Plating		Nickel
Actual Diameter		0.250" (6.35mm)
Industry Recognized Mating Diameter		6.35mm (0.250", 1/4") - Headphone

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
