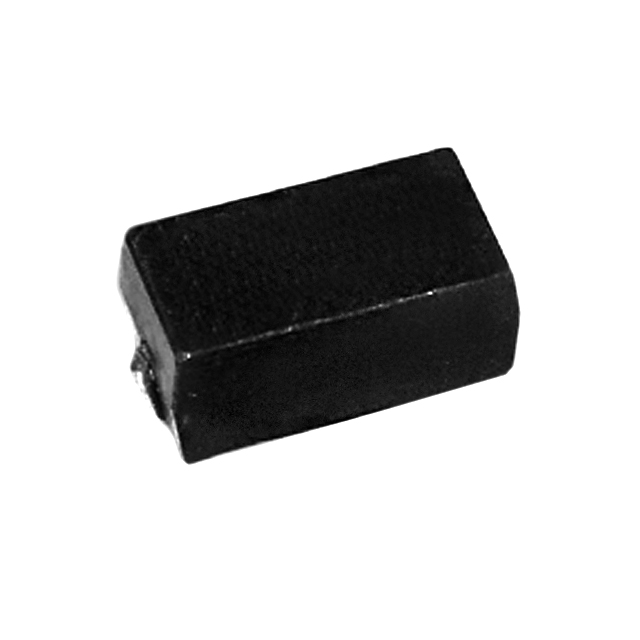

SMW22R2JT

SMW22R2JT

Part Number	SMW22R2JT
Manufacturer	TE Connectivity Passive Product
Other Part Numbers	A103593TR-ND A103593CT-ND A103593DKR-ND 3-1676966-3-ND 3-1676966-3 316769663 A103593TR A103593CT A103593DKR
Description	RES SMD 2.2 OHM 5% 2W 2616
Detailed Description	2.2 Ohms ±5% 2W Chip Resistor 2616 (6740 Metric), J-Lead Flame Retardant Coating, Safety Wirewound
Manufacturer Standard Lead Time	31 weeks
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		TE Connectivity Passive Product
Series		SM, CGS
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Power (Watts)		2W
Tolerance		±5%
Features		Flame Retardant Coating, Safety
Package / Case		2616 (6740 Metric), J-Lead
Temperature Coefficient		±200ppm/°C
Size / Dimension		0.264" L x 0.157" W (6.70mm x 4.00mm)
Composition		Wirewound
Operating Temperature		-55°C ~ 200°C
Number of Terminations		2
Supplier Device Package		SMD
Height - Seated (Max)		0.152" (3.85mm)
Resistance		2.2 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SMW22R2JT
Datasheets		Elevator,Escalotor Datasheet
Datasheets		3-1676966-3 Statement of Compliance

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 4910

Can ship immediately.
