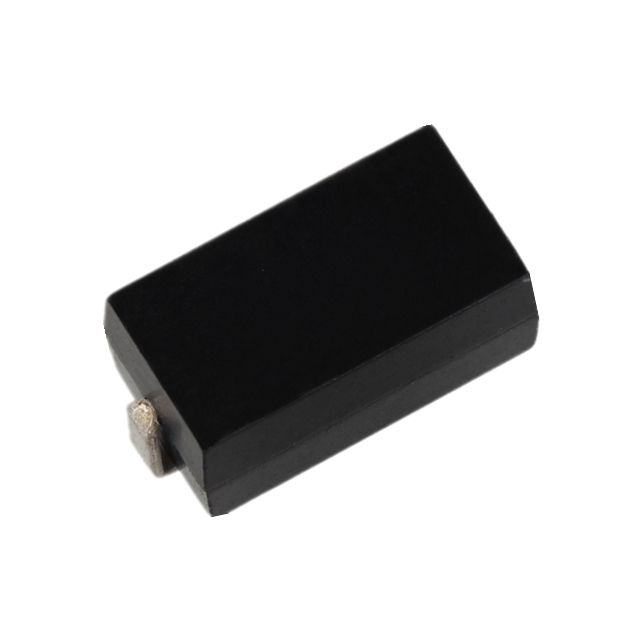

SMW1WL002RFS21

SMW1WL002RFS21

Part Number	SMW1WL002RFS21
Manufacturer	Aillen
Other Part Numbers	3372-SMW1WL002RFS21TR-ND 3372-SMW1WL002RFS21TR
Description	RES 1W 2 OHM 1% SMD2515
Detailed Description	2 Ohms ±1% 1W Chip Resistor 2515 J-Lead Automotive, Photovoltaic Inverters, Industrial Control Equipment, LSD, Home Appliances Wirewound
Datasheet	Datasheet

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Aillen
Series		SMW
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		1W
Tolerance		±1%
Features		Automotive, Photovoltaic Inverters, Industrial Control Equipment, LSD, Home Appliances
Package / Case		2515 J-Lead
Temperature Coefficient		±50ppm/°C
Size / Dimension		0.250" L x 0.150" W (6.35mm x 3.81mm)
Composition		Wirewound
Operating Temperature		-55°C ~ 150°C
Number of Terminations		2
Supplier Device Package		2515
Height - Seated (Max)		0.125" (3.17mm)
Resistance		2 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SMW1WL002RFS21

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
