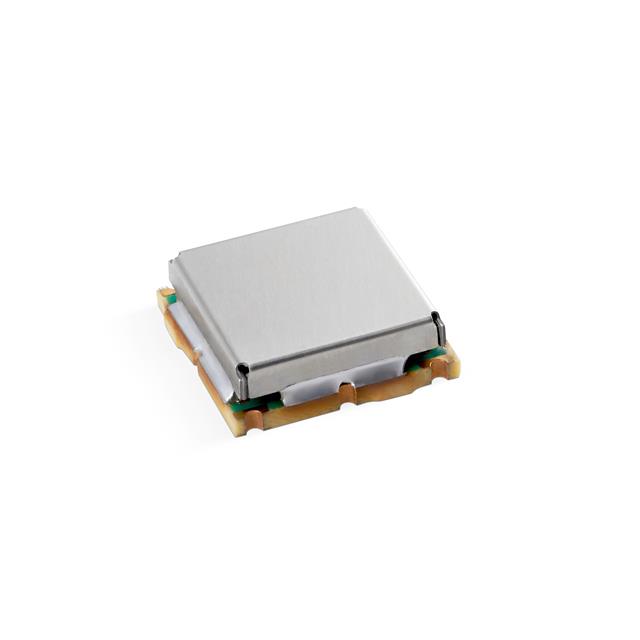

SMV1280A-LF

Part Number
SMV1280A-LF
Manufacturer Z-Communications
Other Part Numbers
5102-SMV1280A-LF-ND
5102-SMV1280A-LF
Description VCO Frequency 1270 MHz - 1290 M
Detailed Description 1280MHz Center Frequency Voltage Controlled Oscillator 3 ±3 dBm -20 2nd Harmonic Typ (dBc)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Z-Communications
Series
SMV
Packaging
Strip
Part Status Active
Size / Dimension 0.300" L x 0.300" W (7.62mm x 7.62mm)
Operating Temperature -40°C ~ 85°C
Voltage - Supply 3V
Height 0.110" (2.79mm)
Frequency Range 1270 ~ 1290MHz
2nd Harmonic, Typ (dBc) -20
Frequency - Center 1280MHz
Icc Max 12mA
Pushing (MHz/V) 3
Phase Noise Typ (dBc/Hz) -98
Power (dBm) 3 ±3

Documents & Media

RESOURCE TYPE LINK
Datasheets SMV1280A-LF

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant
