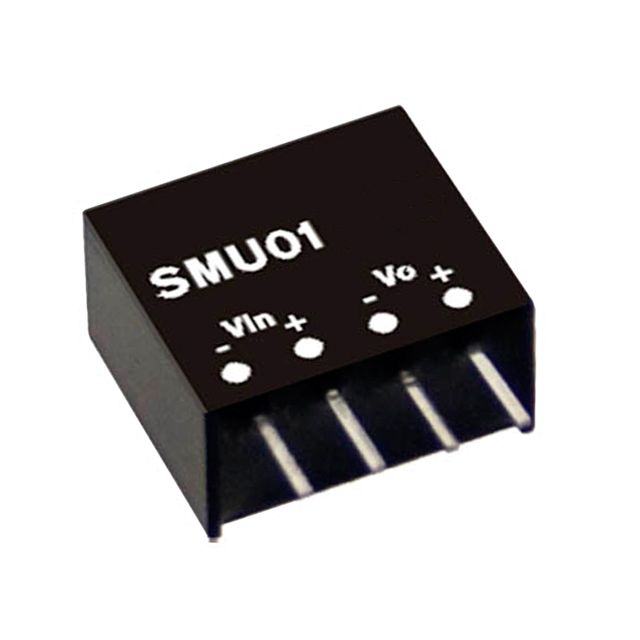

SMU01N-15 _ DC DC Converters_Power Supplies

Part Number	SMU01N-15
Manufacturer	MEAN WELL
Other Part Numbers	1866-4718-ND 1866-4718 SMU01N-15-ND
Description	DC DC CONVERTER 15V 1W
Detailed Description	Isolated Module DC DC Converter 1 Output 15V 67mA 21.6V - 26.4V Input
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		MEAN WELL
Series		SMU01 (1W)
Packaging		Tube
Part Status		Active
Features		OCP, SCP
Package / Case		4-SIP Module
Size / Dimension		0.46" L x 0.24" W x 0.40" H (11.6mm x 6.1mm x 10.1mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 90°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		26.4V
Efficiency		77%
Current - Output (Max)		67mA
Voltage - Input (Min)		21.6V
Voltage - Output 1		15V
Power (Watts)		1 W
Number of Outputs		1
Voltage - Isolation		1.5 kV

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
