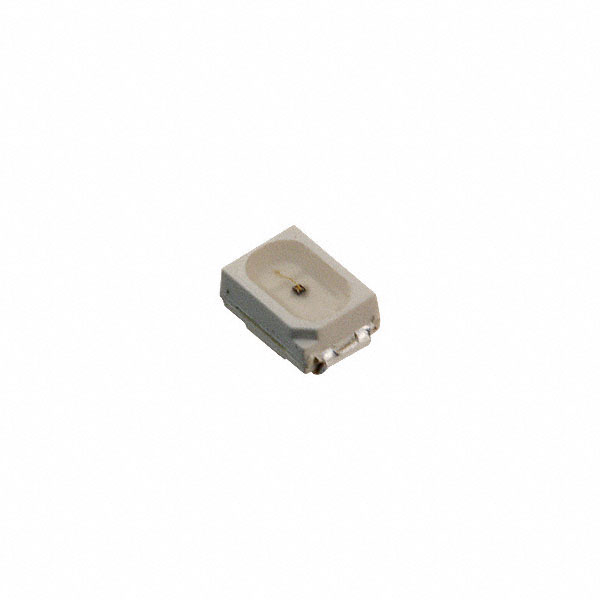

SML-LX23SRC-TR

Part Number
SML-LX23SRC-TR
Manufacturer Lumex, Inc.
Other Part Numbers
67-1341-2-ND
67-1341-1-ND
67-1341-6-ND
67-1341-1
SML-LX23SRC
LU60211CT
LU60211TR
67-1341-6
67-1341-2
67-1341-1-NDR
SMLLX23SRCTR
67-1341-2-NDR
Description LED RED CLEAR SMD
Detailed Description Red LED Indication - Discrete 1.7V 2-SMD, J-Lead
Datasheet Datasheet

Product Attributes

Category
Manufacturer Lumex, Inc.
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Package / Case 2-SMD, J-Lead
Color Red
Size / Dimension 3.00mm L x 2.00mm W
Mounting Type Surface Mount
Millicandela Rating 100mcd
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.7V
Lens Color Colorless
Current - Test 20mA
Viewing Angle 90°
Height (Max) 1.40mm
Wavelength - Peak 660nm
Supplier Device Package SMD
Lens Transparency Clear
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.40mm

Documents & Media

RESOURCE TYPE LINK
Datasheets SML-LX23SRC-TR
Datasheets Lumex RoHS Cert
Datasheets SML-LX23SRC-TR obs 01/Jul/2023
Datasheets SML-LX23 Series
Datasheets SML-LX23 Series Side

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
