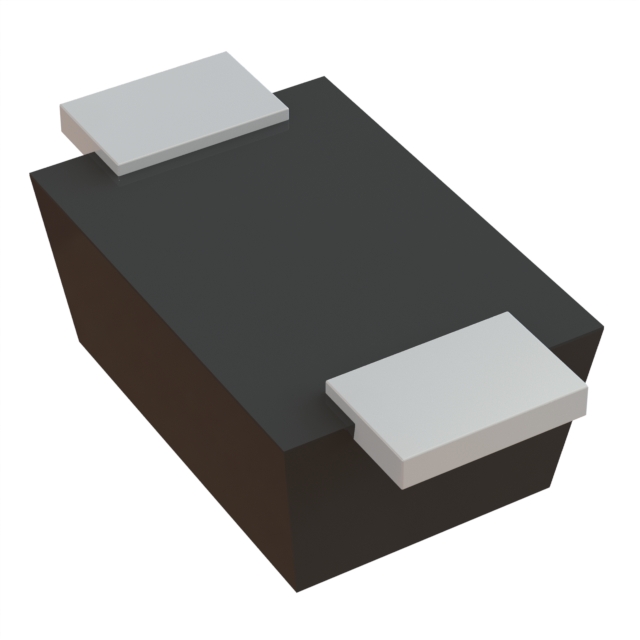

SMF16A-HM3_A08

Part Number
SMF16A-HM3_A08
Manufacturer Vishay
Other Part Numbers
112-SMF16A-HM3_A08TR-ND
112-SMF16A-HM3_A08TR
Description ESD PROTECTION DIODE SMF DO219AB
Detailed Description 26V Clamp 7.7A Ipp Tvs Diode Surface Mount DO-219AB (SMF)
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Vishay
Series
eSMP®
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case DO-219AB
Mounting Type Surface Mount
Type Zener
Operating Temperature -65°C ~ 175°C (TA)
Capacitance @ Frequency 343pF @ 1MHz
Current - Peak Pulse (10/1000µs) 7.7A
Voltage - Reverse Standoff (Typ) 16V
Supplier Device Package DO-219AB (SMF)
Unidirectional Channels 1
Voltage - Breakdown (Min) 17.8V
Voltage - Clamping (Max) @ Ipp 26V
Power - Peak Pulse 200W
Power Line Protection No
Grade Automotive
Qualification AEC-Q101

Documents & Media

RESOURCE TYPE LINK
Datasheets SMF16A-HM3_A08
