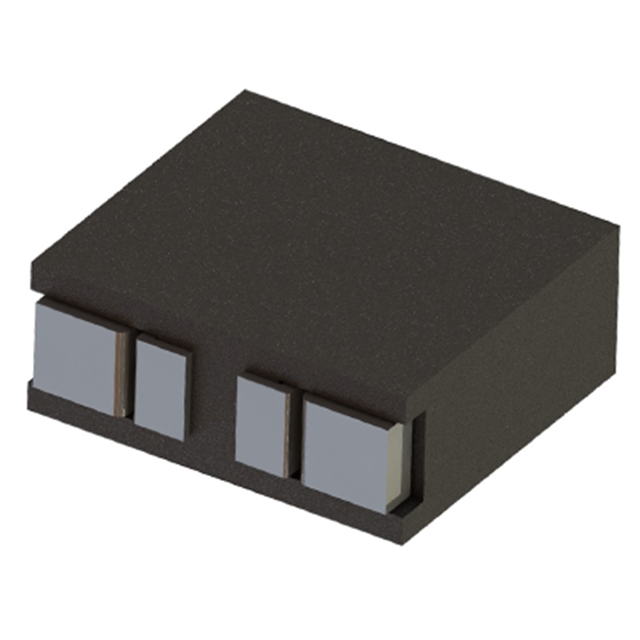

SMF110511R15LZF

Part Number
SMF110511R15LZF
Manufacturer Superworld Electronics
Other Part Numbers
5025-SMF110511R15LZFTR-ND
5025-SMF110511R15LZFCT-ND
5025-SMF110511R15LZFDKR-ND
5025-SMF110511R15LZFTR
5025-SMF110511R15LZFCT
5025-SMF110511R15LZFDKR
Description TLVR (L11.7XW5.7XH11) 150NH
Detailed Description 150 nH Unshielded Wirewound Inductor 77 A 0.125mOhm Nonstandard, 4 Lead
Manufacturer Standard Lead Time 7 days
Datasheet Datasheet

Product Attributes

Category
Manufacturer Superworld Electronics
Series
SMF110511 (Z)
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±15%
Package / Case Nonstandard, 4 Lead
Size / Dimension 0.461" L x 0.224" W (11.70mm x 5.70mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 0.125mOhm
Current - Saturation (Isat) 84A
Inductance Frequency - Test 100 kHz
Supplier Device Package Nonstandard, 4 Lead
Height - Seated (Max) 0.441" (11.20mm)
Inductance 150 nH
Current Rating (Amps) 77 A

Documents & Media

RESOURCE TYPE LINK
Datasheets SMF110511R15LZF

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8504.50.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

In Stock: 400

Can ship immediately.
