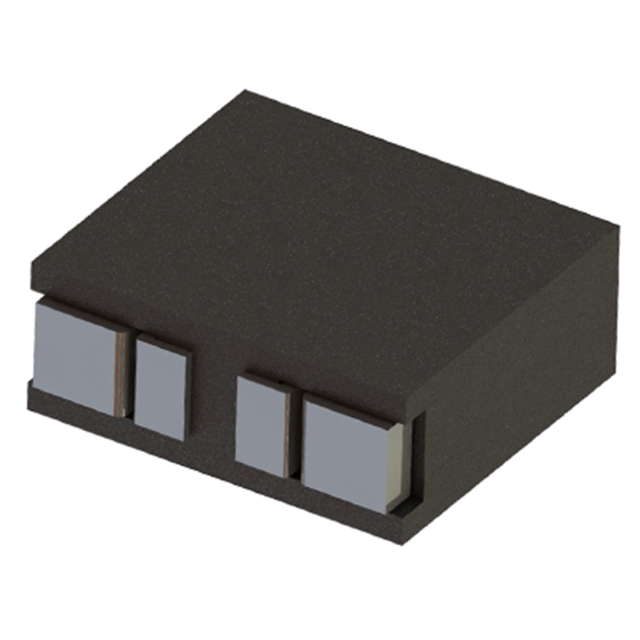

SMF100512R08KZF

SMF100512R08KZF

Part Number	SMF100512R08KZF
Manufacturer	Superworld Electronics
Other Part Numbers	5025-SMF100512R08KZFTR-ND 5025-SMF100512R08KZFCT-ND 5025-SMF100512R08KZFDKR-ND 5025-SMF100512R08KZFCT 5025-SMF100512R08KZFTR 5025-SMF100512R08KZFDKR
Description	TLVR (L10XW5XH12) 80NH
Detailed Description	80 nH Unshielded Wirewound Inductor 75 A 0.125mOhm Nonstandard, 4 Lead
Manufacturer Standard Lead Time	7 days
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Superworld Electronics
Series		SMF110512 (Z)
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±10%
Package / Case		Nonstandard, 4 Lead
Size / Dimension		0.394" L x 0.197" W (10.00mm x 5.00mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		0.125mOhm
Current - Saturation (Isat)		111A
Inductance Frequency - Test		100 kHz
Supplier Device Package		Nonstandard, 4 Lead
Height - Seated (Max)		0.472" (12.00mm)
Inductance		80 nH
Current Rating (Amps)		75 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SMF100512R08KZF

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
HTSUS		8504.50.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 300

Can ship immediately.
