SMCJ22A-13-F

SMCJ22A-13-F

Part Number	SMCJ22A-13-F
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	SMCJ22A-FDITR-ND SMCJ22A-FDICT-ND SMCJ22A-FDIDKR-ND SMCJ22A-FDIDKR SMCJ22A13F SMCJ22A-FDITR SMCJ22A-FDICT
Description	TVS DIODE 22VWM 35.5VC SMC
Detailed Description	35.5V Clamp 42.2A Ipp Tvs Diode Surface Mount SMC
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

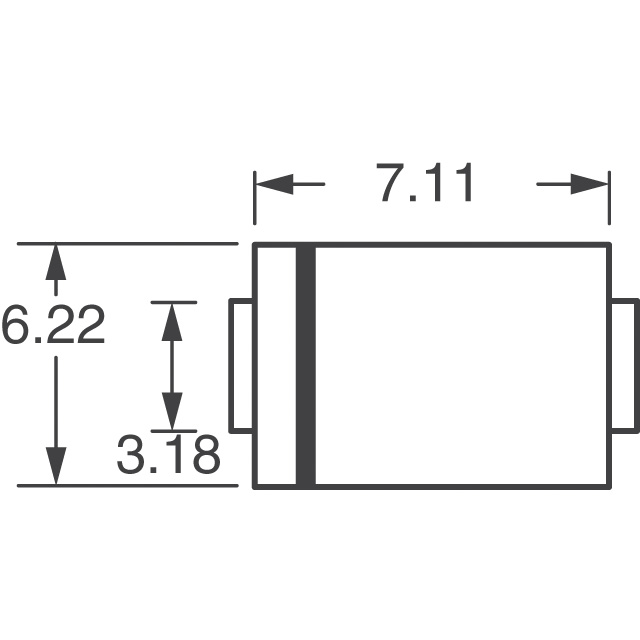

Package / Case		DO-214AB, SMC
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-55°C ~ 150°C (TJ)
Applications		General Purpose
Current - Peak Pulse (10/1000µs)		42.2A
Voltage - Reverse Standoff (Typ)		22V
Supplier Device Package		SMC
Unidirectional Channels		1
Voltage - Breakdown (Min)		24.4V
Voltage - Clamping (Max) @ Ipp		35.5V
Power - Peak Pulse		1500W (1.5kW)
Power Line Protection		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		SMCJ22A-13-F
Datasheets		Diodes Environmental Compliance Cert
Datasheets		Assembly Site 01/Jun/2022

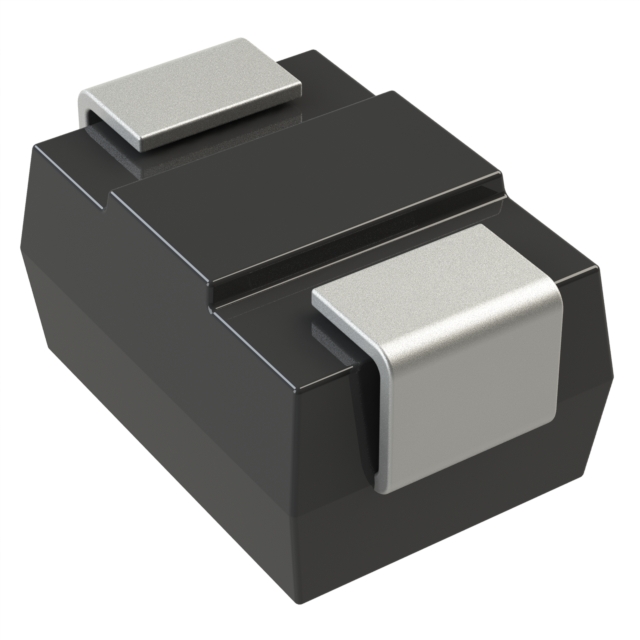

Datasheets		SMCJ Series Side

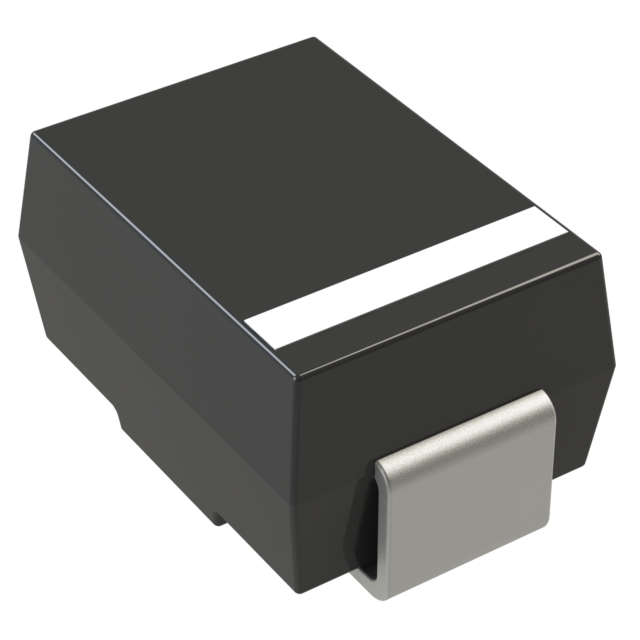

Datasheets		SMCJ Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 10504

Can ship immediately.
