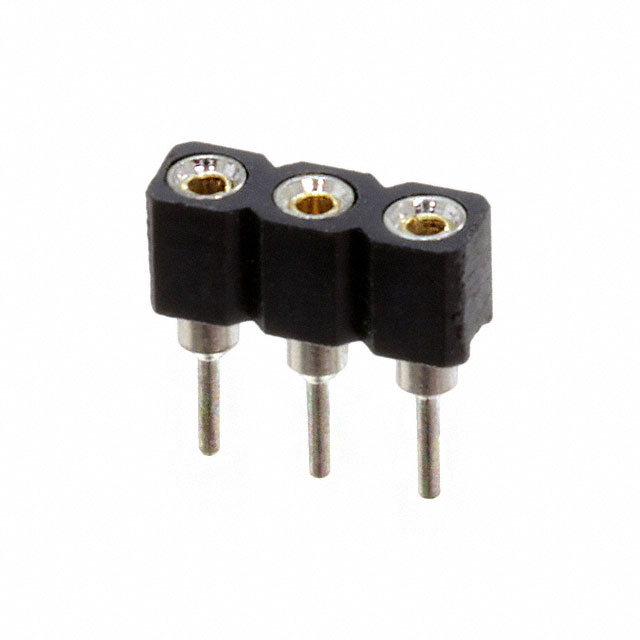

SMC-1-03-1-GT _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	SMC-1-03-1-GT
Manufacturer	Adam Tech
Other Part Numbers	2057-SMC-1-03-1-GT-ND 2057-SMC-1-03-1-GT
Description	MACHINE PIN SOCKET 3P 2.54MM PIT
Detailed Description	3 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Adam Tech
Series		SMC
Packaging		Bag
Part Status		Active
Connector Type		Socket
Voltage Rating		100V, 150VDC
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		3
Style		Board to Board
Operating Temperature		-55°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Tin
Contact Shape		Circular
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		SMC-1-03-1-GT
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
