SMB5-P-C-H-RA-CA1 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	SMB5-P-C-H-RA-CA1
Manufacturer	Samtec, Inc.
Other Part Numbers	SMB5-P-C-H-RA-CA1-ND Q12556201 Q10963609

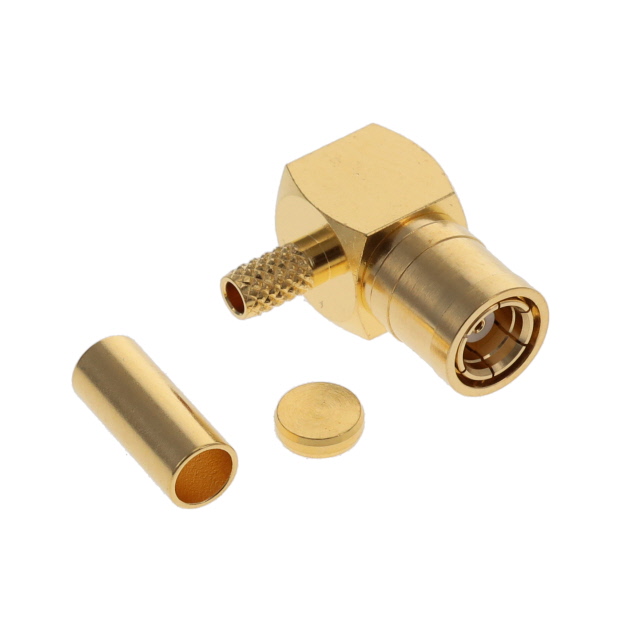

Description	SMB PLUG 50 OHM RA FREE HANGING
Detailed Description	SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Samtec, Inc.
Series		SMB5
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line), Right Angle
Cable Group		RG-174, 316
Operating Temperature		-65°C ~ 165°C
Fastening Type		Snap-On
Includes		3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Connector Style		SMB
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Shield Termination		Crimp
Center Contact Material		Copper Alloy
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		4 GHz
Number of Ports		1
Voltage Rating		335 V

RESOURCE TYPE		LINK
Datasheets		SMB5-P-C-H-RA-CA1

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
