SMAJ90AQ-13-F _ TVS Diodes_Transient Voltage Suppressors (TVS)_Circuit Protection

Part Number	SMAJ90AQ-13-F
Manufacturer	Zetex Semiconductors (Diodes Inc.)
Other Part Numbers	31-SMAJ90AQ-13-FTR-ND 31-SMAJ90AQ-13-FTR
Description	TRANSIENT VOLTAGE SUPPRESSOR PP
Detailed Description	146V Clamp 2.7A Ipp Tvs Diode Surface Mount SMA
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		Zetex Semiconductors (Diodes Inc.)
Series		SMAJ
Packaging		Tape & Reel (TR)
Part Status		Active

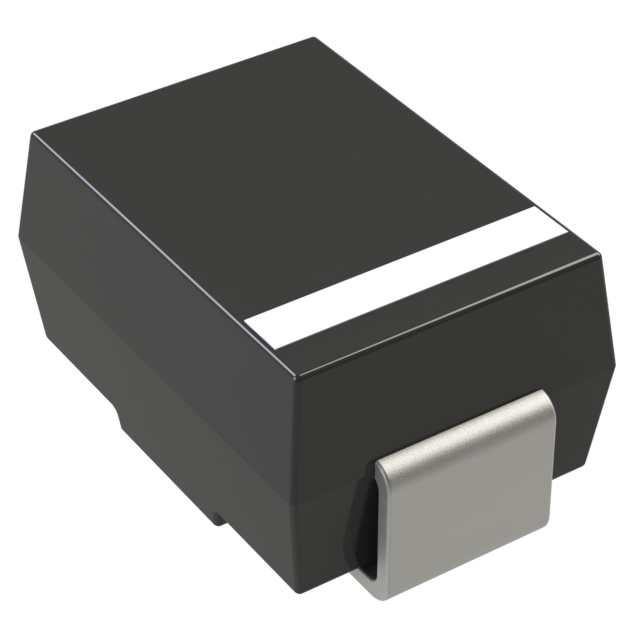

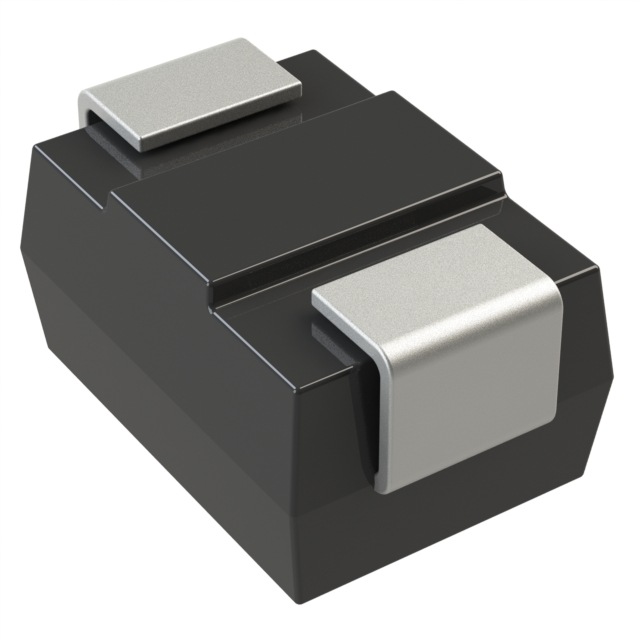

Package / Case		DO-214AC, SMA
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-55°C ~ 150°C (TJ)
Applications		General Purpose
Current - Peak Pulse (10/1000µs)		2.7A
Voltage - Reverse Standoff (Typ)		90V
Supplier Device Package		SMA
Unidirectional Channels		1
Voltage - Breakdown (Min)		100V
Voltage - Clamping (Max) @ Ipp		146V
Power - Peak Pulse		400W
Power Line Protection		No
Grade		Automotive
Qualification		AEC-Q101

RESOURCE TYPE		LINK
Datasheets		SMAJ90AQ-13-F
