SMAC25-100J-RC _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	SMAC25-100J-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-SMAC25-100J-RCTR-ND 3475-SMAC25-100J-RCTR

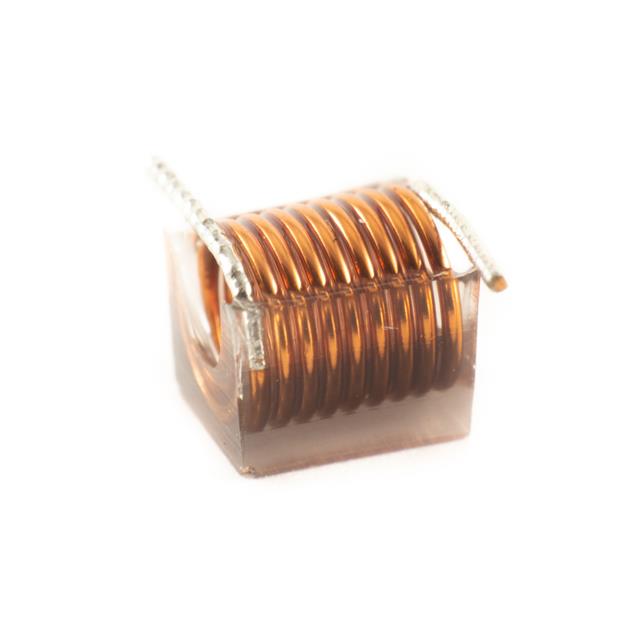

Description	100NH 5% SMD AIR CORE INDUCTOR
Detailed Description	100 nH Unshielded Wirewound Inductor 1.7 A 12.3mOhm Max Nonstandard
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		Nonstandard
Size / Dimension		0.190" L x 0.150" W (4.83mm x 3.81mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		12.3mOhm Max
Q @ Freq		100 @ 150MHz
Frequency - Self Resonant		1.2GHz
Material - Core		Air
Inductance Frequency - Test		150 MHz
Height - Seated (Max)		0.165" (4.20mm)
Inductance		100 nH
Current Rating (Amps)		1.7 A

RESOURCE TYPE		LINK
Datasheets		SMAC25-100J-RC

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
