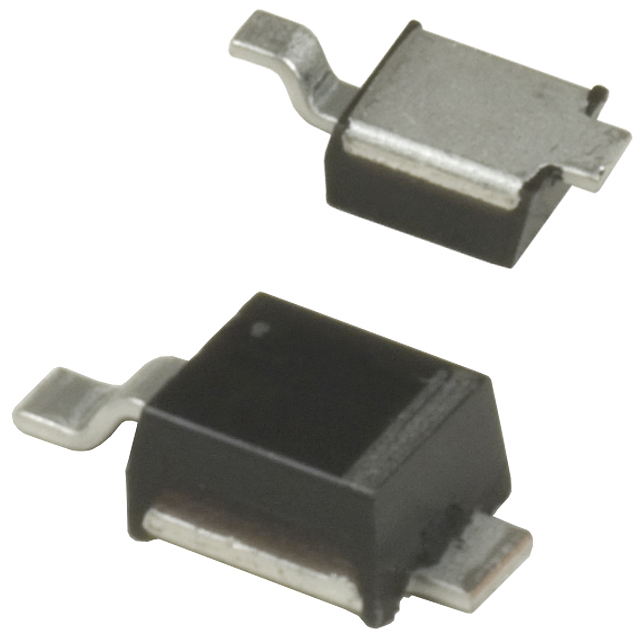

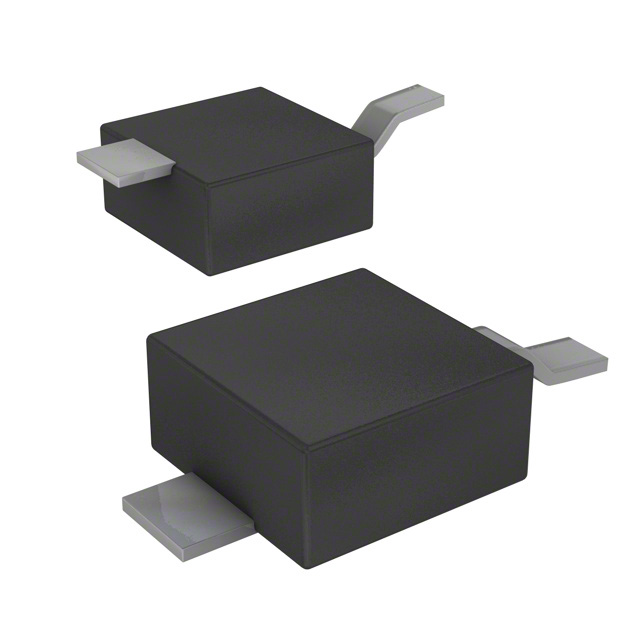

SM2T14A

Part Number
SM2T14A
Manufacturer STMicroelectronics
Other Part Numbers
SM2T14A-ND
Description TVS DIODE 12VWM 19.9VC DO216AA
Detailed Description 19.9V Clamp 9A Ipp Tvs Diode Surface Mount DO-216AA
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
SM2T, TRANSIL™
Packaging
Tape & Reel (TR)
Part Status Obsolete
Package / Case DO-216AA
Mounting Type Surface Mount
Type Zener
Applications General Purpose
Current - Peak Pulse (10/1000µs) 9A
Voltage - Reverse Standoff (Typ) 12V
Supplier Device Package DO-216AA
Unidirectional Channels 1
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Power - Peak Pulse 200W
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets SM2T14A

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
