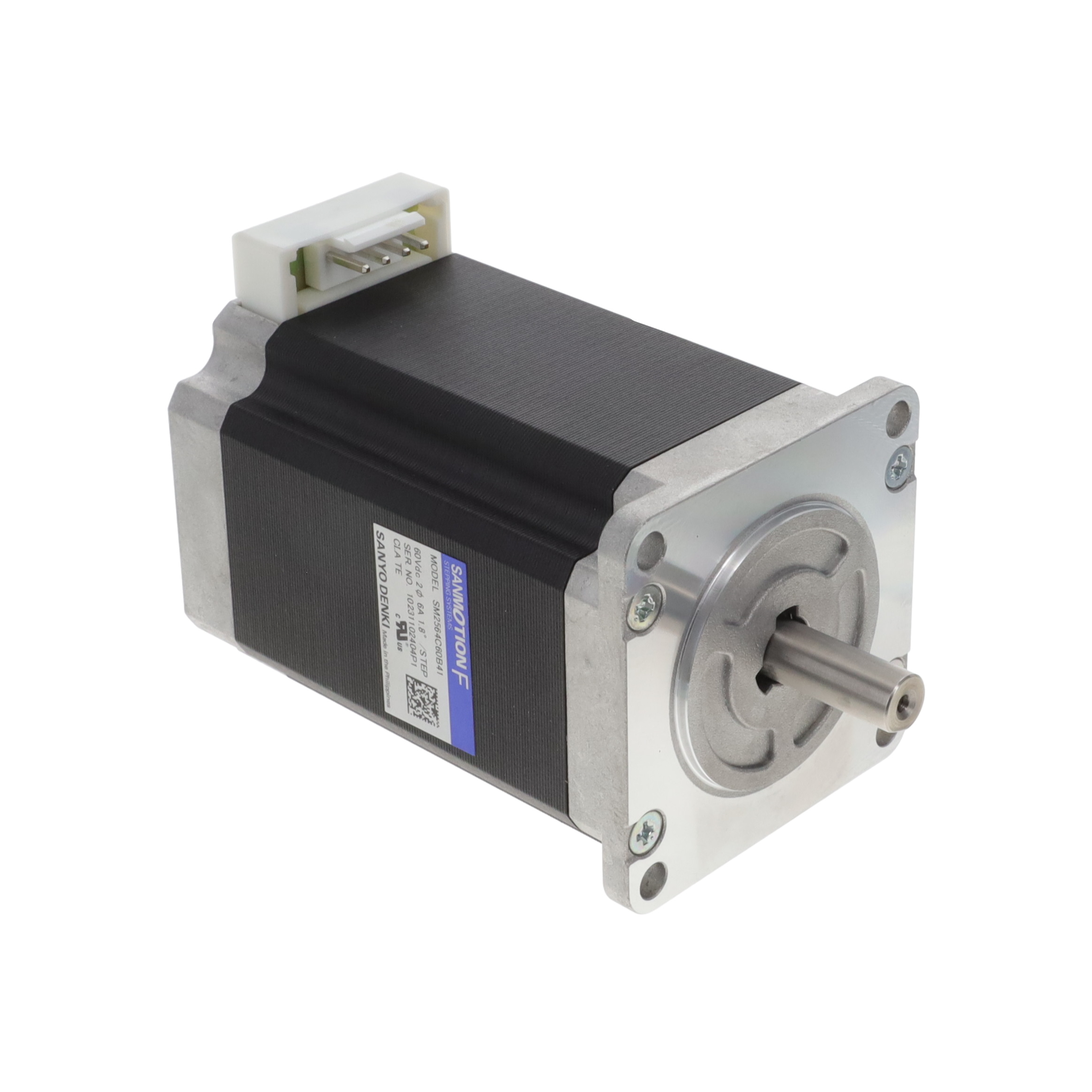

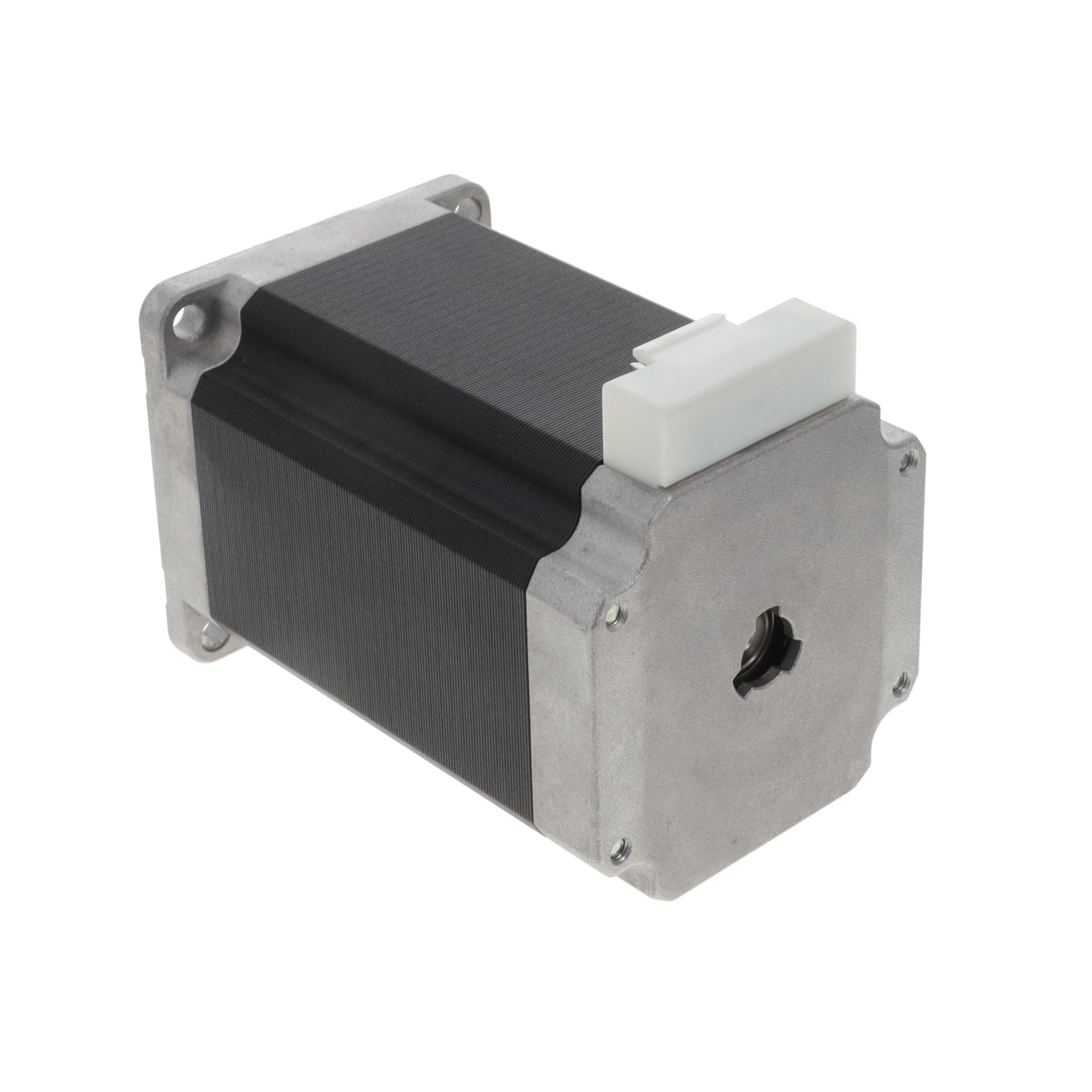

SM2564C60B41P

Part Number
SM2564C60B41P
Manufacturer Sanyo Denki SanMotion Products
Other Part Numbers
2300-SM2564C60B41P-ND
2300-SM2564C60B41P
Description F2, 56 SQ., 1.8, BIPOLAR/SINGLE
Detailed Description Bipolar Stepper Motor Hybrid Frame Size 200.0 Step 6 A 24VDC
Manufacturer Standard Lead Time 2 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Sanyo Denki SanMotion Products
Series
SM
Packaging
Bulk
Part Status Active
Features Double Flatted Shaft
Voltage - Rated 24VDC
Size / Dimension Square - 2.205" x 2.205" (56.00mm x 56.00mm)
Type Hybrid
Termination Style Connector
Step Angle 1.8°
Torque - Holding (oz-in / mNm) 354 / 2500
Coil Type Bipolar
Diameter - Shaft 0.315" (8.00mm)
Mounting Hole Spacing 1.856" (47.14mm)
Length - Shaft and Bearing 0.811" (20.60mm)
Current Rating (Amps) 6 A
Coil Resistance 270 mOhms
Steps per Revolution 200.0

Documents & Media

RESOURCE TYPE LINK
Datasheets SM2564C60B41P

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8501.20.4000
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant

In Stock: 4

Can ship immediately.
