SM03FS017

Part Number
SM03FS017
Manufacturer WITHWAVE CO LTD
Other Part Numbers
3546-SM03FS017-ND
3546-SM03FS017
Description Board Edge 2.92 mm (DC to 40 GHz

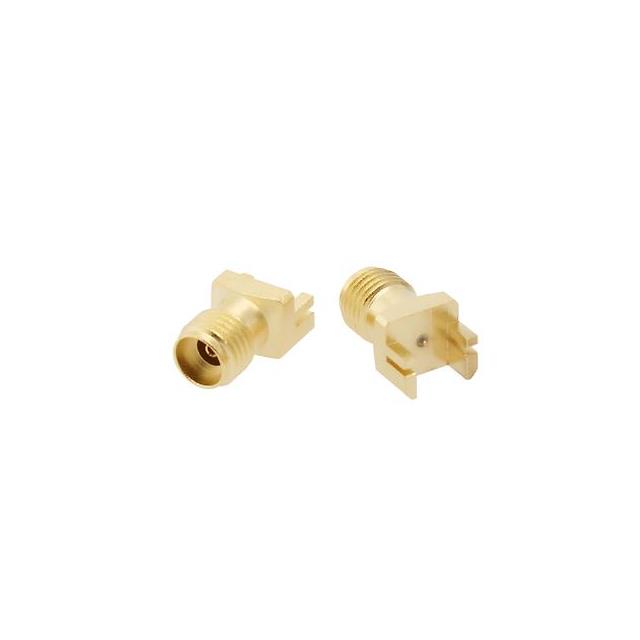

Detailed Description 2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
Datasheet Datasheet

Product Attributes

Category
Manufacturer WITHWAVE CO LTD
Series
Packaging
Bulk
Part Status Active
Connector Type Jack, Female Socket
Contact Termination Solder
Impedance 50 Ohms
Mounting Type Board Edge, End Launch
Fastening Type Threaded
Connector Style 2.92mm
Body Material Brass
Housing Color Gold
Shield Termination Solder
Center Contact Material Beryllium Copper
Body Finish Gold
Center Contact Plating Gold
Frequency - Max 40 GHz
Number of Ports 1

Documents & Media

RESOURCE TYPE LINK
Datasheets SM03FS017

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4010
