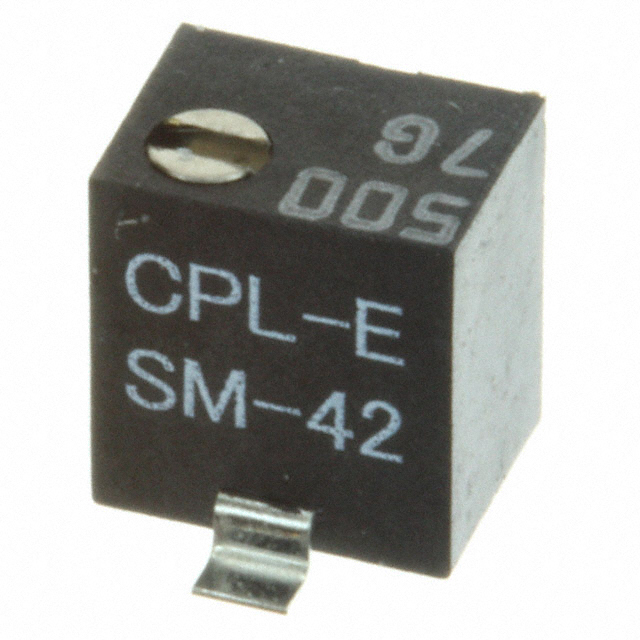

SM-42TX500

Part Number
SM-42TX500
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
SM-42TX500TR-ND
SM-42TX500CT-ND
SM-42TX500DKR-ND
SM42TX500
SM-42TX500CT
SM-42TX500DKR
SM-42TX 50 ohm(500) 01
SM-42TX500TR
SM-42TX 50 OHM (500)
Description TRIMMER 50 OHM 0.25W GW TOP ADJ
Detailed Description 50 Ohms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
SM42
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Adjustment Type Top Adjustment
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Resistive Material Cermet
Resistance 50 Ohms
Number of Turns 11

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 739

Can ship immediately.
