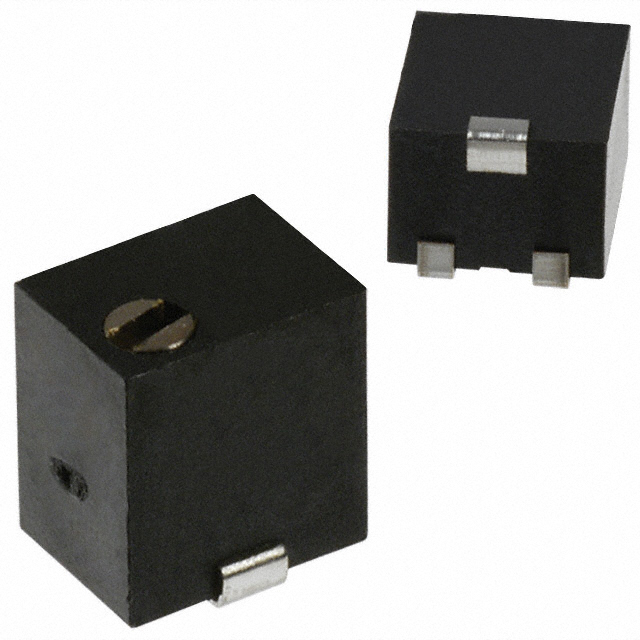

SM-42TW500

Part Number
SM-42TW500
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
SM-42TW500TR-ND
SM-42TW500CT-ND
SM-42TW500DKR-ND
SM-42TW500TR
SM42TW500
SM-42TW 50 ohm(500) 01
SM-42TW500DKR
SM-42TW 50 OHM (500)
SM-42TW500CT
Description TRIMMER 50 OHM 0.25W J LEAD TOP
Detailed Description 50 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
SM42
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Adjustment Type Top Adjustment
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Mounting Type Surface Mount
Termination Style J Lead
Resistive Material Cermet
Resistance 50 Ohms
Number of Turns 11.0

Documents & Media

RESOURCE TYPE LINK
Datasheets SM-42TW500
Datasheets Multiple Series Packaging 02/Oct/2018
Datasheets SM4(2,3)TW Series Top

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 5211

Can ship immediately.
