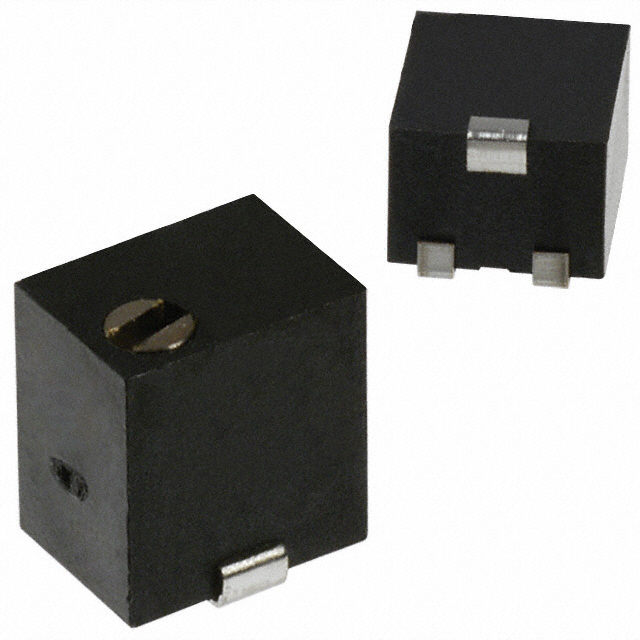

SM-42TW204

Part Number
SM-42TW204
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
SM-42TW204TR-ND
SM-42TW204CT-ND
SM-42TW204DKR-ND
SM42TW204
SM-42TW204TR
SM-42TW204CT
SM-42TW 200K OHM (204)
SM-42TW 200K ohm(204) 01
SM-42TW204DKR
Description TRIMMER 200KOHM 0.25W J LEAD TOP
Detailed Description 200 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
SM42
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Adjustment Type Top Adjustment
Size / Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Mounting Type Surface Mount
Termination Style J Lead
Resistive Material Cermet
Resistance 200 kOhms
Number of Turns 11

Documents & Media

RESOURCE TYPE LINK
Datasheets SM-42TW204
Datasheets Multiple Series Packaging 02/Oct/2018
Datasheets SM4(2,3)TW Series Top

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1683

Can ship immediately.
