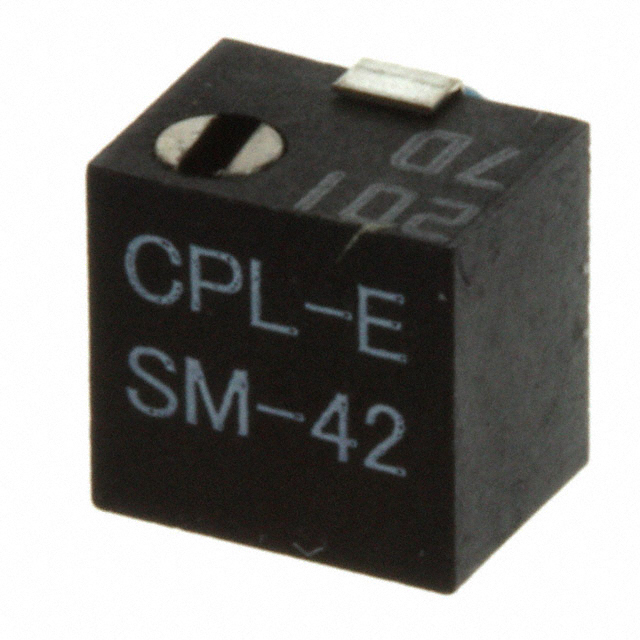

SM-42TA200

Part Number
SM-42TA200
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
SM-42TA200TR-ND
SM42TA200
SM-42TA 20 OHM (200)
SM-42TA200TR
SM-42TA200DKR
SM-42TA200CT
Description TRIMMER 20 OHM 0.25W J LEAD SIDE
Detailed Description 20 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Side Adjustment
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
SM42
Packaging
Tape & Reel (TR)
Part Status Active
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Adjustment Type Side Adjustment
Size / Dimension Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm)
Mounting Type Surface Mount
Termination Style J Lead
Resistive Material Cermet
Resistance 20 Ohms
Number of Turns 11

Documents & Media

RESOURCE TYPE LINK
Datasheets SM-42TA200
Datasheets Multiple Series Packaging 02/Oct/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
