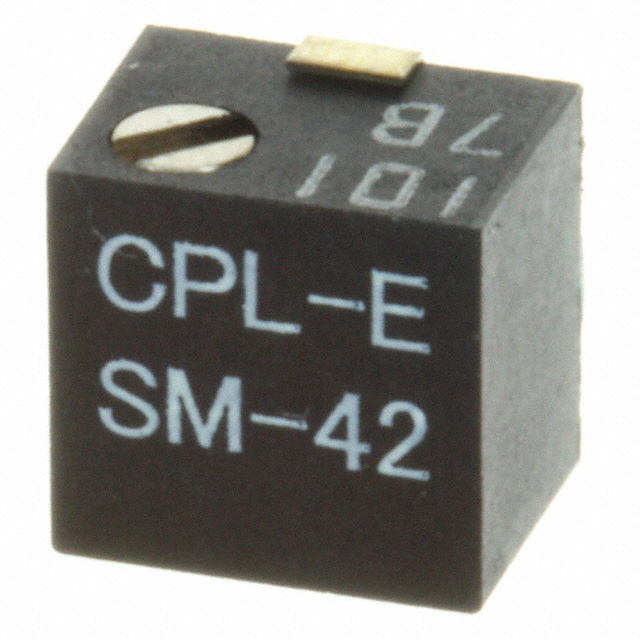

SM-42TA100

Part Number
SM-42TA100
Manufacturer Nidec Copal Electronics (Nidec Components)
Other Part Numbers
SM-42TA100TR-ND
SM-42TA 10 ohm(100) 01
SM42TA100
SM-42TA 10 OHM (100)
SM-42TA100CT
SM-42TA100TR
SM-42TA100DKR
Description TRIMMER 10 OHM 0.25W J LEAD SIDE
Detailed Description 10 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Side Adjustment
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nidec Copal Electronics (Nidec Components)
Series
SM42
Packaging
Tape & Reel (TR)
Part Status Active
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Adjustment Type Side Adjustment
Size / Dimension Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm)
Mounting Type Surface Mount
Termination Style J Lead
Resistive Material Cermet
Resistance 10 Ohms
Number of Turns 11.0

Documents & Media

RESOURCE TYPE LINK
Datasheets SM-42TA100
Datasheets Multiple Series Packaging 02/Oct/2018

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.40.8050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
