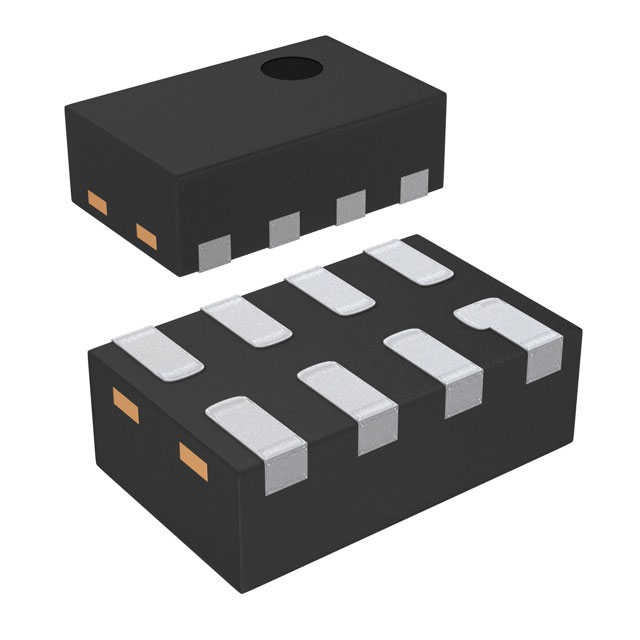

SLG59M1649V

Part Number
SLG59M1649V
Manufacturer Intersil (Renesas Electronics Corporation)
Other Part Numbers
1695-SLG59M1649VTR-ND
1695-SLG59M1649VCT-ND
1695-SLG59M1649VDKR-ND
1695-SLG59M1649VDKR
1827-1091-6-ND
1695-SLG59M1649VCT
1827-1091-1
1695-SLG59M1649VTR
1827-1091-2
1827-1091-2-ND
1827-1091-1-ND
1827-1091-6
Description A 1.6 MM 23 MO/4 A POWER SWITC
Detailed Description Power Switch/Driver 1:1 P-Channel 2A 8-STDFN (1x1.6)
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Intersil (Renesas Electronics Corporation)
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 8-UFDFN
Output Type P-Channel
Mounting Type Surface Mount
Number of Outputs 1
Switch Type General Purpose
Operating Temperature -40°C ~ 85°C (TA)
Output Configuration High Side
Rds On (Typ) 23mOhm
Input Type CMOS
Voltage - Supply (Vcc/Vdd) 1.5V ~ 5.5V
Current - Output (Max) 2A
Ratio - Input:Output 1:1
Supplier Device Package 8-STDFN (1x1.6)

Documents & Media

RESOURCE TYPE LINK
Datasheets SLG59M1649V
Datasheets SLG59M1649V Layout Guide

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

In Stock: 1000

Can ship immediately.
