SLF12555T-102MR34-PF

Part Number
SLF12555T-102MR34-PF
Manufacturer TDK Corporation
Other Part Numbers
445-174222-2-ND
445-174222-1-ND
445-174222-6-ND
-SLF12555T-102MR34
SLF12555T102MR34P
445-174222-1
445-174222-2
SLF12555T102MR34P-ND
445-174222-6
Description FIXED IND 1MH 600MA 1.344OHM SMD

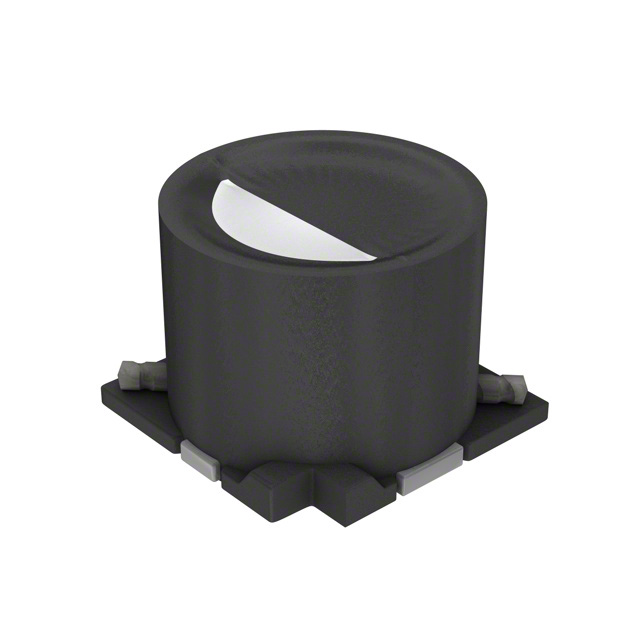

Detailed Description 1 mH Shielded Drum Core, Wirewound Inductor 600 mA 1.344Ohm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer TDK Corporation
Series
SLF
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 105°C
DC Resistance (DCR) 1.344Ohm Max
Current - Saturation (Isat) 340mA
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.228" (5.80mm)
Inductance 1 mH
Current Rating (Amps) 600 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets SLF12555T-102MR34-PF

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
