SLF10145T-681MR38

Part Number
SLF10145T-681MR38
Manufacturer TDK Corporation
Other Part Numbers
445-1226-2-ND
SLF10145T681MR38
445-1226-1
445-1226-2
Description FIXED IND 680UH 380MA 1.92OHM SM

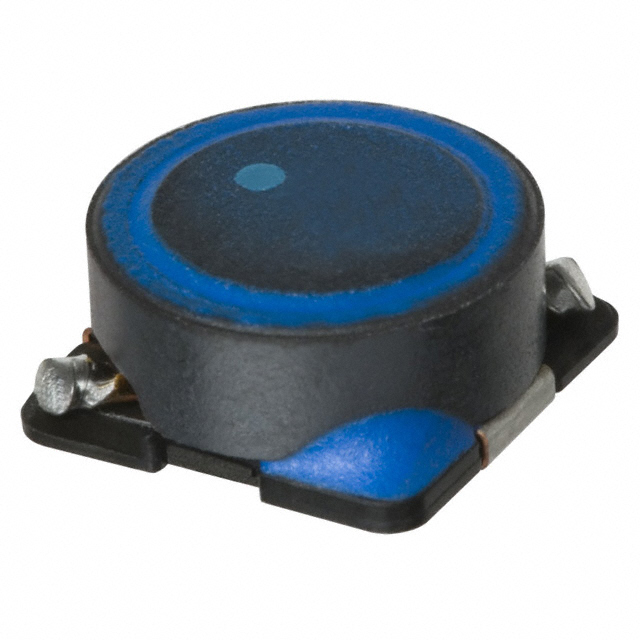

Detailed Description 680 µH Shielded Drum Core, Wirewound Inductor 380 mA 1.92Ohm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer TDK Corporation
Series
SLF
Packaging
Tape & Reel (TR)
Part Status Obsolete
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.398" L x 0.398" W (10.10mm x 10.10mm)
Mounting Type Surface Mount
Shielding Shielded
Type Drum Core, Wirewound
Operating Temperature -40°C ~ 105°C
DC Resistance (DCR) 1.92Ohm Max
Current - Saturation (Isat) 380mA
Material - Core Ferrite
Inductance Frequency - Test 1 kHz
Height - Seated (Max) 0.189" (4.80mm)
Inductance 680 µH
Current Rating (Amps) 380 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets SLF10145T-681MR38

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
