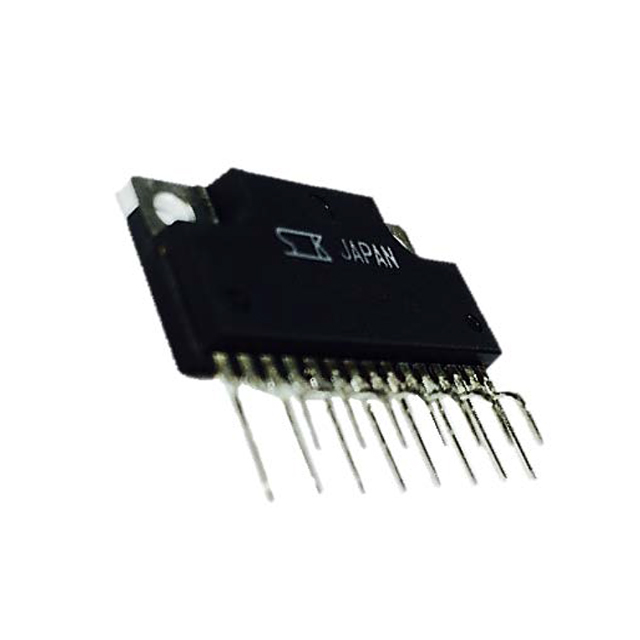

SLA5073

Part Number
SLA5073
Manufacturer Sanken Electric Co., Ltd.
Other Part Numbers
SLA5073-ND
SLA5073 DK
Description MOSFET 6N-CH 60V 5A 15ZIP
Detailed Description Mosfet Array 60V 5A 5W Through Hole 15-ZIP

Product Attributes

Category
Manufacturer Sanken Electric Co., Ltd.
Series
Packaging
Tube
Part Status Active
Package / Case 15-SIP Exposed Tab, Formed Leads
Mounting Type Through Hole
Configuration 6 N-Channel (3-Phase Bridge)
Operating Temperature 150°C (TJ)
Technology MOSFET (Metal Oxide)
Power - Max 5W
Drain to Source Voltage (Vdss) 60V
Current - Continuous Drain (Id) @ 25°C 5A
Input Capacitance (Ciss) (Max) @ Vds 320pF @ 10V
Rds On (Max) @ Id, Vgs 300mOhm @ 3A, 4V
FET Feature Logic Level Gate
Vgs(th) (Max) @ Id 2V @ 250µA
Supplier Device Package 15-ZIP

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
