SH10-5,08 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	SH10-5,08
Manufacturer	Altech Corporation
Other Part Numbers	1920-1357-ND 1920-1357

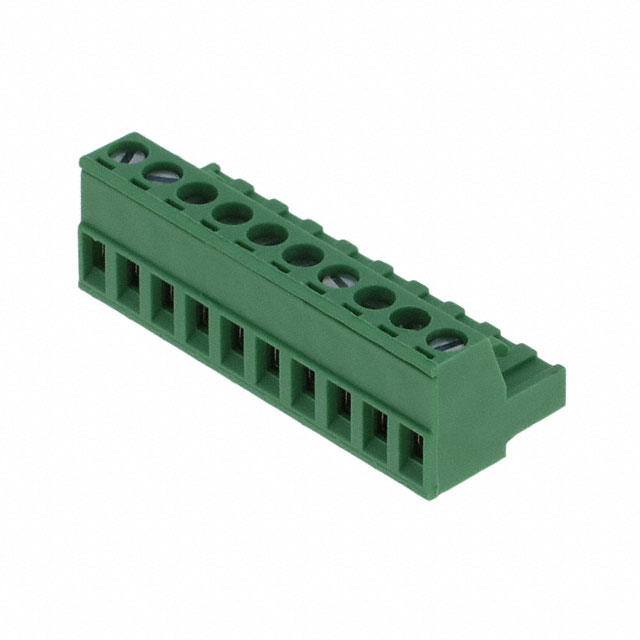

Description	TERM BLOCK PLUG 10POS 5.08MM
Detailed Description	10 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Altech Corporation
Series
Packaging		Bulk
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		10
Pitch		0.200" (5.08mm)
Screw Size		M3
Type		Plug, Female Sockets
Termination Style		Screw - Rising Cage Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		16A
Number of Levels		1
Wire Gauge or Range - AWG		14-30 AWG
Wire Gauge or Range - mm²		2.5mm²
Positions Per Level		10
Contact Material		Brass
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5 Nm (4.4 Lb-In)
Contact Mating Finish		Nickel
Wire Strip Length		7.5mm
Insulation Height		0.610" (15.49mm)
Current - UL		12 A
Voltage - IEC		450 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		SH10-5,08

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
